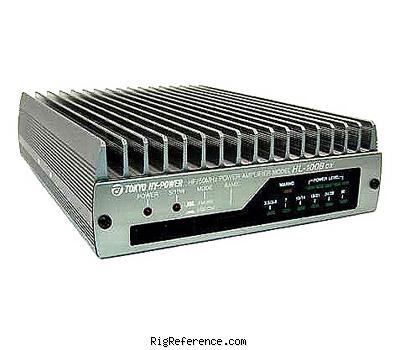

The Tokyo Hy-Power HL-100Bdx was designed primarily to work with the Yaesu FT-817 QRP Radio. Although it will work with any radio that outputs 5-10 watts. When connected to an FT-817 via the rear DIN connector the operator has an amplifier that will follow the radio as it changes bands

Typical RF Drive (full output): 5 -10 W selectable
RF Power Transistors: RD70HVF1 × 2 (Mitsubishi)

General characteristics

HAM bands
80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m
Frequency stability
-
Tuning steps
-
Memories
None

Transmitter

TX-range
80-10 m + 6 m
Modulations
AM   FM   CW   SSB
RF-output
SSB/CW: 100 W PEP, AM: 33 W, FM: 50 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
-
TX
15 A max

Physical

Dimensions (w×h×d)
174 × 56 × 235 mm (6.85 × 2.20 × 9.25 in)
Weight
2.40 kg (5.3 lbs)
Form factor
Base Station
Manufactured
Between 20xx and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Input power: 5W / 10W switchable
Accessories
-
RigReference ID
5289
MPN
TOKYO-HY-POWER-HL-000100BDX
