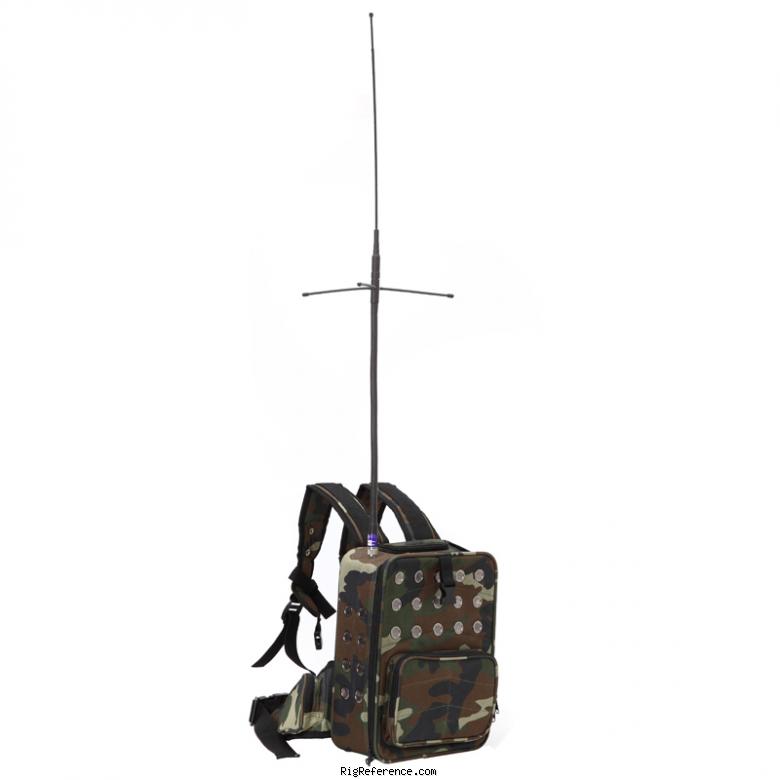

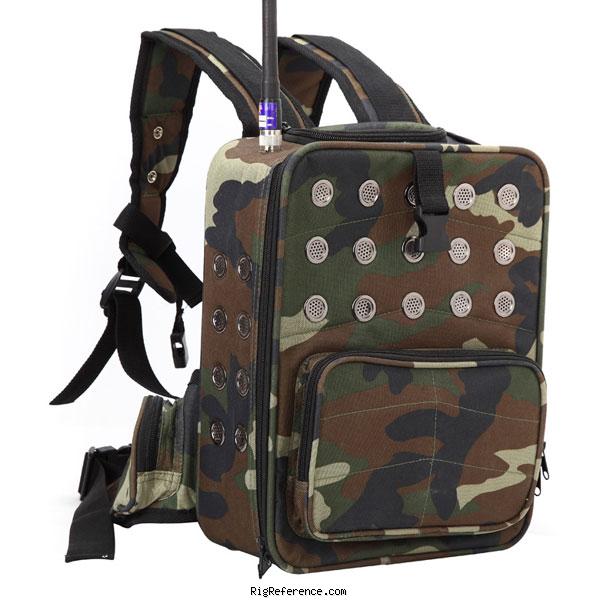

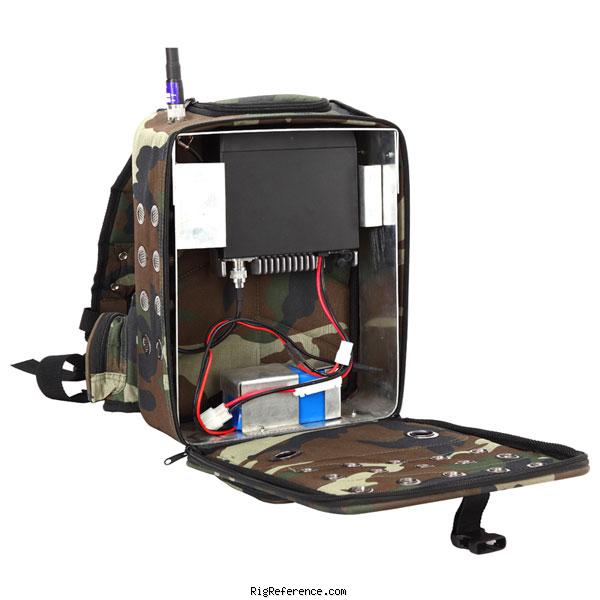

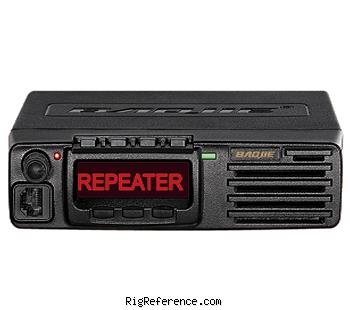

The Baojie BJ-851 is a complete 70 cm FM repeater that fits in a backpack. With the 10 W power output extends you can extend your range from a few miles up to 30 miles with ease.
The repeater has a 10 MHz receive / transmit interval.
Price when new in 2013: USD 265,-

General characteristics

HAM bands
70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
12.5 / 25 kHz
Memories
?

Receiver

RX-range
400-470 MHz
Modulations
FM
Sensitivity
0.25 µV / 12db SINAD
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
≥ 70 dB
Audio output
?

Transmitter

TX-range
400-470 MHz
Modulations
FM
RF-output
5 / 10 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
12 - 13.8 V DC 20,000 mAh Lithium battery
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
160 × 43 × 147 mm (6.30 × 1.69 × 5.79 in)
Weight
2.00 kg (4.4 lbs) (4 kg with backpack)
Form factor
Mobile
Manufactured
Between 201x and 201x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
CTCSS / DCS
PC programmable
Accessories
-
RigReference ID
6007
MPN
BAOJIE-BJ-000851

Manuals, diagrams and brochures

No documents available for this particular model.
