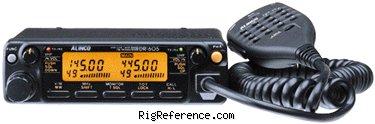

The Alinco DR-605T is a Mobile VHF/UHF Transceiver. It covers 136-174 / 420-471 MHz in receive and 144-148 / 430-450 MHz in transmit. The RF output is High: 50/35 W, Low: 5/5 W. It requires 13.8V DC power. Features include 9K6 packet ready and Twin RX. The weight is 1.1 kg. Current drain is Max 1.2 A in receive and Max 11.5 A in transmit. Dimensions are 47 × 140 × 176 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 136-174 / 420-471 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-148 / 430-450 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.2 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 47 × 176 mm (5.51 × 1.85 × 6.93 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready. Twin RX
- Accessories
- -
- RigReference ID
- 2332
- MPN
- ALINCO-DR-000605T
Manuals, diagrams and brochures
- Alinco DR-605 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-605 Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-605T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DR-605T in Good condition is around:
- USD 123
These estimates are based on the following prices:
