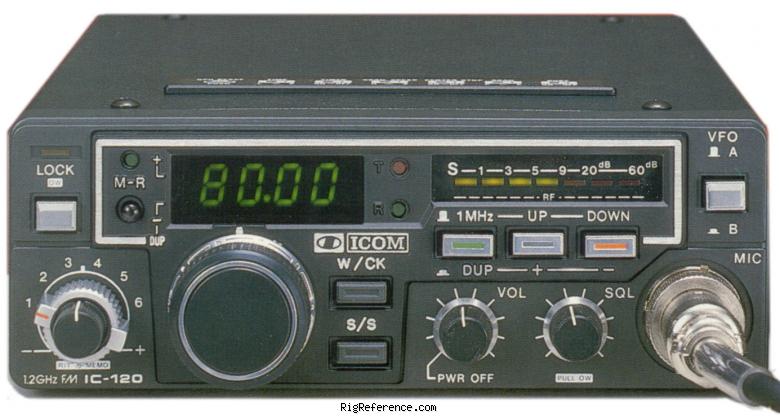

The Icom IC-120 is similar to the IC-290A but operates on the 1200 MHz band instead of 2 meters. Power output is 1 watt. Operation is from 1260-1300 MHz. The speaker is built-in. This radio requires 2.5 amps. The Icom ML-12 is an optional 10 watt transmitter booster with receive preamp.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
1260-1300 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
1260-1300 MHz
Modulations
FM
RF-output
1 W

Connections

Antenna
-
Impedance
50 Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
2.5 A max

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 1983 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2964
MPN
ICOM-IC-000120
