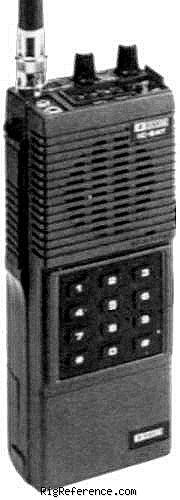

The ICOM IC-2 is a ruggedly built 2 meter handheld radio. Even though it was introduced way back in the early 1980's, spare parts can still be found fairly easily (2010). The keypad is for DTMF use only, tuning is done via thumbwheel switches located on the top of the rig.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
5 kHz
Memories
?

Receiver

RX-range
144-148 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 MHz
Modulations
FM
RF-output
High: 1.5 W, Low: 0.15 W

Connections

Antenna
BNC
Impedance
50 Ω
Other
-

Electrical

Power requirements
8.4V DC
Current drain RX
20-130 mA
TX
220-550 mA

Physical

Dimensions (w×h×d)
65 × 117 × 35 mm (2.56 × 4.61 × 1.38 in) without battery pack
Weight
490 gr (1.1 lbs) with BP3
Form factor
Handheld
Manufactured
Between 1983 and 199x

Other features

Usage
Amateur / Ham radio operators
Features + options
DTMF
Accessories
-
RigReference ID
3048
MPN
ICOM-IC-000002AT

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2AT. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-2AT is around:

  • USD 0.00 ~ USD 0.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 100.00 Used / Good Paul Terry Walhus
2008 USD 3.00 Used / Good silkt
1991 USD 45.00 Used / Good n1ivy
