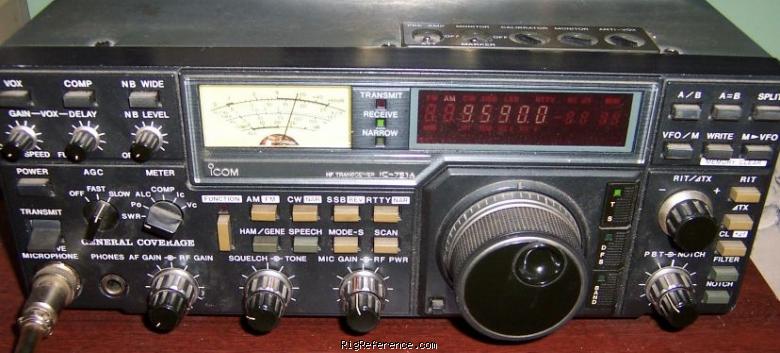

This A-model includes some improvements from the previous version (ICOM IC-751), but it still have the battery-backed BIOS-RAM. Special procedure to replace the battery, or the radio will die!


SSB (A3J) 200 watts PEP input
CW 200 watts input
FM 200 watts input
AM 40 watts output

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
Continuous
Memories
32 channels in 1 bank(s)

Receiver

RX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   RTTY
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   USB   LSB   RTTY
RF-output
SSB/CW/FM: 10-100W (200W input), AM: 10-40W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
Max 20 A

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1985 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
3159
MPN
ICOM-IC-000751A

Manuals, diagrams and brochures

ICOM IC-751A Service-Manual-adjustments.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A Schematic Diagram-1.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A Schematic Diagram-2.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A Service-Manual-options-installations.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A-pll-adjustment.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-751A-dcdc-modification.pdf PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Still a workhorse of the 2k's 6 years ago by mvaughanusm81

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-751A. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-751A is around:

  • EUR 547.00 ~ EUR 442.00
  • USD 48.00 ~ USD 300.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 EUR 550.00 Used / Mint IW3HZS
2021 EUR 450.00 Used / Mint Henry
2021 EUR 500.00 Used / Mint IW3HZS
2021 EUR 550.00 Used / Mint IW3HZS
2020 USD 315.00 Used / Good Marc
