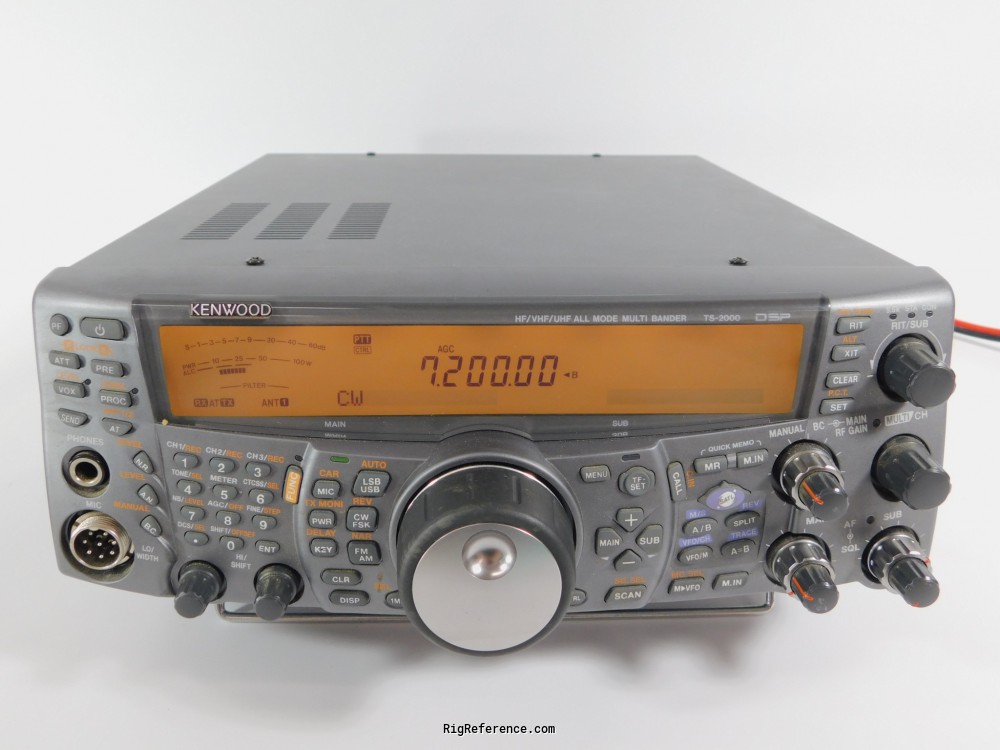

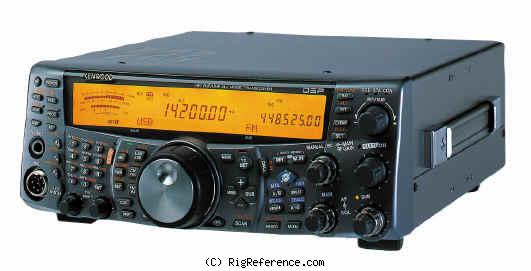

The Kenwood TS-2000 is an all band HF/VHF/UHF transceiver with exceptional features and versatility. Wide band Main HF reception includes: 30 kHz-60 MHz. On VHF/UHF you get: 142-152 and 420-450 MHz. 1240-1300 MHz is featured in the TS-2000X model. Sub band (AM/FM modes only) reception includes: 118-174, 220-512 MHz. Output is 100 watts on HF, 6 meters and 2 meters. 50 watts for 440 MHz. A built-in TCXO ensures excellent stabililty. A back lit front panel makes operation easy in any lighting conditions. This radio features keypad entry plus RIT/XIT. The TS-2000 comes with the Kenwood MC-43S hand mic.

The Kenwood TS-2000 can also be operated via computer or optional RC-2000 control head.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  10m
Frequency stability
?
Tuning steps
?
Memories
300 channels in 1 bank(s)

Receiver

RX-range
0.03-60 / 118-174 / 220-512 MHz
23 cm/10 W option
Modulations
AM   FM   N-FM   CW   USB   LSB   FSK
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
Main: >70 dBSub: >60 dB
Audio output
?

Transmitter

TX-range
10-160 m + WARC / 6 m / 2 m / 70 cm
Modulations
AM   FM   N-FM   CW   USB   LSB   FSK
RF-output
Max 100/100/100/50 W

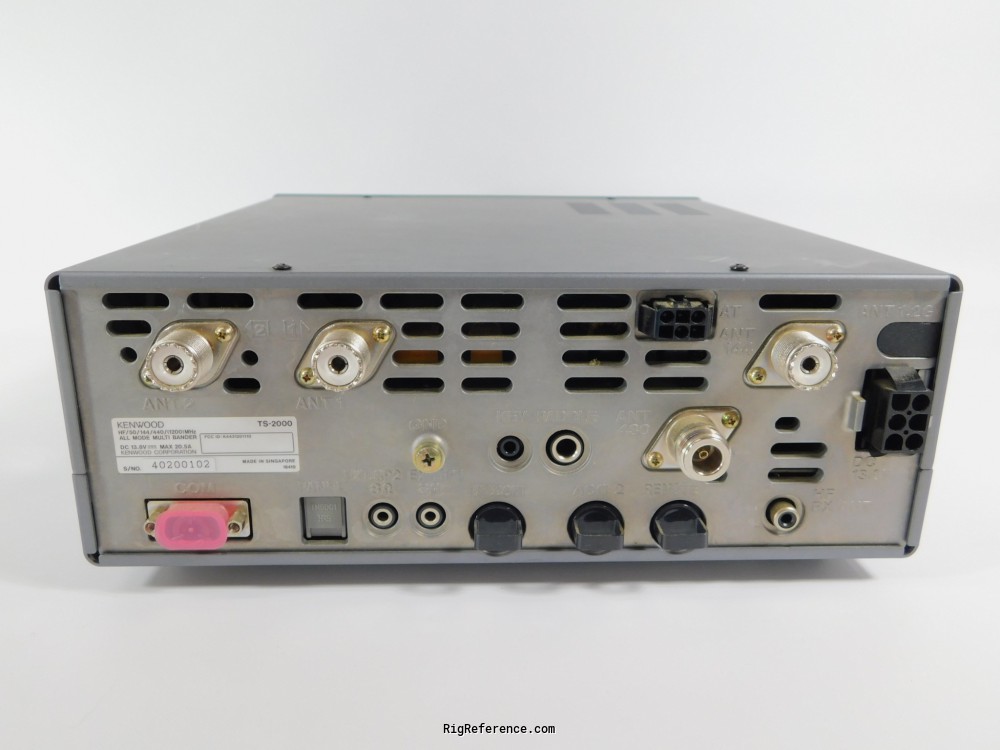

Connections

Antenna
SO-239 + N-type
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC +/-15%
Current drain RX
Squelched 2.6 A
TX
Max 20.5 A

Physical

Dimensions (w×h×d)
281 × 107 × 371 mm (11.06 × 4.21 × 14.61 in)
Weight
7.80 kg (17.2 lbs)
Form factor
Base Station
Manufactured
Between 2000 and 200x

Other features

Usage
Amateur / Ham radio operators
Features + options
DSP
Built-in 1K2/9K6 TNC
Auto-AT on HF/6m
DX-Cluster functions
Accessories
-
RigReference ID
3480
MPN
KENWOOD-TS-002000

Manuals, diagrams and brochures

Kenwood TS-2000 Serv Man Supplement PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Serv Man Supplement II PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Serv Man Supplement III PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 Service Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 User Manual PDF - Unknown size, submitted by RigReference
Kenwood TS-2000 User Manual Dutch PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
Very versitile shack in a box! 5 years ago by rreh917
Good radio for the money 5 years ago by kd4qhg
SOLID PERFORMER 5 years ago by brent redenbach
TS-2000 13 years ago by bulldurham

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Kenwood TS-2000 is around:

  • EUR 287.00 ~ EUR 606.00
  • USD 657.00 ~ USD 676.00
  • CAD 862.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 1399.95 New / Mint brent redenbach
2019 USD 750.00 Used / Good brent redenbach
2019 USD 750.00 Used / Good brent redenbach
2018 USD 800.00 Used / Mint Dave
2017 CAD 1200.00 Used / Mint brent redenbach
