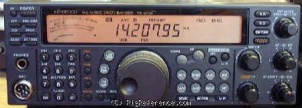

The Kenwood TS-570S is a Desktop HF/VHF Transceiver. It covers 0.5-30 MHz / 50-54 MHz in reception and 10-160 m + WARC / 50-54 MHz in transmission. The maximum RF output is 100W PEP. It operates on a 13.8V DC power supply. Features include DSP. Dimensions are 96 × 270 × 271 mm.
General characteristics
- HAM bands
- 160m 80m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 6m 10m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 0.5-30 MHz / 50-54 MHz
- Modulations
- AM FM CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 10-160 m + WARC / 50-54 MHz
- Modulations
- AM FM CW SSB
- RF-output
- Max 100/100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 270 × 96 × 271 mm (10.63 × 3.78 × 10.67 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- DSP
- Accessories
- -
- RigReference ID
- 3494
- MPN
- KENWOOD-TS-000570S
Manuals, diagrams and brochures
- Kenwood TS-570D/S/G Instruction Manual PDF - Unknown size, submitted by RigReference
- Kenwood TS-570 Service Manual (A4) PDF - Unknown size, submitted by RigReference
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Another Great Kenwood | 13 years ago by KA9MOT | |
| Excellent Radio | 14 years ago by k5fs |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Kenwood TS-570S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Kenwood TS-570S in Good condition is around:
- USD 504 ~ USD 566
These estimates are based on the following prices:
