Puxing PX-58/28

Handheld UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

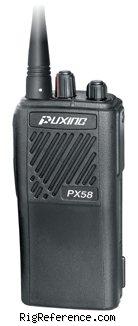

The Puxing PX-58/28 is a handheld transceiver. Frequency range for reception and transmission is 136―150 MHz (VHF Lo version), 150-174 MHz (VHF Hi version), 400-430 MHz (UHF Lo version) and 430—450 MHz (UHF Hi version). Frequency stability is ±2.5 ppm. RF output is 1 or 5W. The radio features 1 memory bank with 16 channels. It operates on 7.2V DC (±20%) or internal Li-ion battery. Features include CTCSS / DCS and PC programmability. Dimensions are 140 × 60 × 36 mm. Weight is 330 gr including battery.

General characteristics

HAM bands: ?
Frequency stability: ±2.5 ppm
Tuning steps: ?
Memories: 16 channels in 1 bank(s)

Receiver

RX-range: 136―150 MHz (VHF Lo version)
150-174 MHz (VHF Hi version)
400-430 MHz (UHF Lo version)
430—450 MHz (UHF Hi version)
Modulations: N-FM W-FM
Sensitivity: ＜0.2 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 136―150 MHz (VHF Lo version)
150-174 MHz (VHF Hi version)
400-430 MHz (UHF Lo version)
430—450 MHz (UHF Hi version)
Modulations: N-FM W-FM
RF-output: 1 or 5W

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.2V DC (±20%) or internal Li-ion battery
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 60 × 140 × 36 mm (2.36 × 5.51 × 1.42 in) not including antenna
Weight: 330 gr (11.6 oz) including battery
Form factor: Handheld
Manufactured: Between 200x and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: CTCSS / DCS
PC programmable
Accessories: -
RigReference ID: 4509
MPN: PUXING-PX-000058/28
