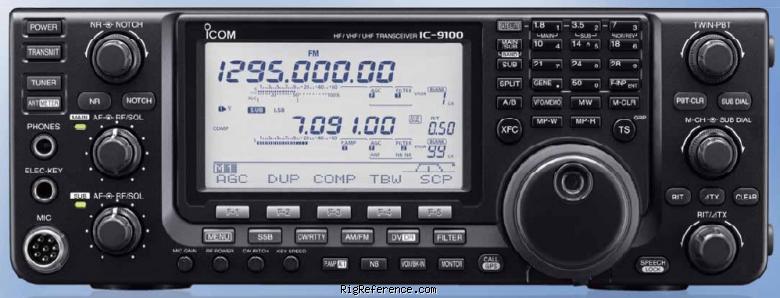

The Icom IC-9100 is a versatile and expandable transceiver. It offers professional performance, out of the box on HF, 6 meters and 2 meters with 100 watts. The 440 MHz band is also built-in with 75 watts. The UX-9100 band unit can also be added at any time to 1200 MHz, 10 watt operation. The IC-9100 can simultaneously receive on two different bands and works as if there are two independent receivers in one radio. Each main and sub-receiver has a dedicated DSP unit providing flexible digital IF filters, AGC time constant, twin PBT, manual and auto notch filter, noise reduction, noise blanker, etc. The USB port can transfer modulator, received audio, RTTY demodulator and DV mode data. Satellite operation is not an after-thought on this transceiver. The satellite mode synchronizes the uplink (transmitting) and downlink (receiving) frequencies and shifts the frequency with the same tuning step. Twenty alphanumeric satellite memory channels store frequency, mode and tone settings. A built in RTTY demodulator and decoder allows you to read a RTTY message instantly without an external PC or external decoder. A built in automatic tuner covers the HF bands plus 6 meters. Other refinements include electronic keyer jack on the front panel, four CW memories, voice squelch control, band edge beep, built in voice synthesizer. The multi-function meter shows signal strength, output power, SWR, ALC and compression level. There are main and sub-receiver speaker outputs.

The ICOM IC-9100 made its debut at the Tokyo HamFair 2009 on August 22. Actual sales started in spring of 2011.

Original price in 2011: USD 3600,-

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  6m  2m  70cm  23cm  10m
Frequency stability
Tuning steps


10-160 m + WARC / 6 m / 2m / 70cm
23cm + D-Star optional
AM   FM   CW   USB   LSB   D-STAR   RTTY   DV
Optional roofing filter modules with 3 & 6kHz filters for HF/6m, and 15kHz filter only for 50MHz and up.
Receiver system
Double conversion superheterodyne
Image rejection
Better than 70 dB
Audio output


10-160 m + WARC / 6 m / 2m / 70cm
23cm + D-Star optional
AM   FM   CW   USB   LSB   D-STAR   DV
HF/50/144MHz: 100W, 430MHz: 75W, 1.2GHz: 10W


SO-239 + N-type
50 Ω


Power requirements
+13.8V DC
Current drain RX
24 A max


Dimensions (w×h×d)
315 × 116 × 343 mm (12.40 × 4.57 × 13.50 in)
11.00 kg (24.3 lbs)
Form factor
Base Station
Between 2009 and 201x

Other features

Amateur / Ham radio operators
Features + options
Built-in HF/50MHz ATU (tuner)
IF-DSP (32-bit operation and 24-bit ADC)
24 bit A/D converter
Rear-panel USB port
Digital Noise Reduction
Manual and Automatic Notch
Digital Twin PBT
Dual Display
100 Watt Output (75 W on 440)

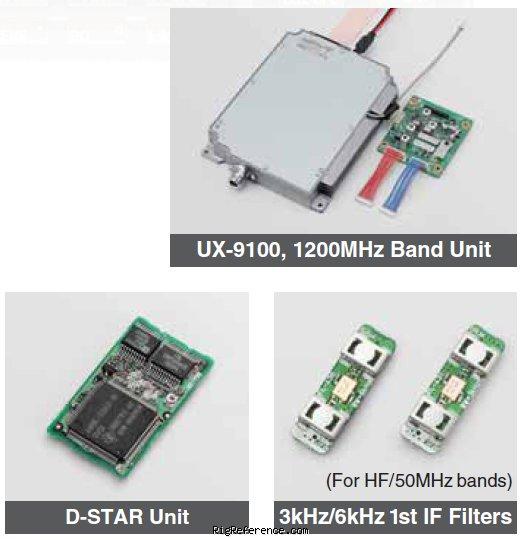

1.2GHz (23cm) is available with optional UX-9100 module.
RigReference ID

Manuals, diagrams and brochures

ICOM IC-9100 Product Brochure PDF - Unknown size, submitted by RigReference
Icom IC -9100 Brochure (full-size) PDF - 3.83 MB, submitted by RigReference
Icom IC-9100 Instruction Manual ENG PDF - 41.40 MB, submitted by RigReference
Icom IC-9100 Service Manual PDF - 16.31 MB, submitted by RigReference
Upload relevant documents

Reviews & stories

Rating Title Submitted
Excellent performance, limited features 10 years ago by dm5957
Good mileage, poor comfort 14 years ago by HamNBeans

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-9100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-9100 is around:

  • EUR 975.00
  • USD 690.00 ~ USD 1146.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 1200.00 Used / Mint Patrick
2013 EUR 3079.00 New / Mint thiecom.de
2011 USD 3799.95 New / Mint universal-radio
2011 USD 3450.00 New / Good ralphm
2011 USD 3500.00 New / Mint rob422rjm
