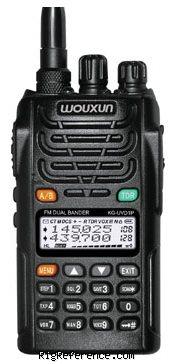

Wouxun KG-UVD1P

Handheld VHF/UHF Transceiver

Specs Manuals (1) Reviews (2) Prices (4) Compare

The Wouxun KG-UVD1P is a handheld VHF/UHF transceiver. It covers 136-174 / 350-470 MHz, 136-174 / 400-480 MHz, 136-174 / 420-520 MHz, 136-174 / 245-250 MHz, 136-174 / 216-280 MHz, 136-174 / 225-226 MHz, and 144-146 / 430-440 MHz. The KG-UVD1P has a frequency stability of ±2.5ppm and tuning steps of 5/6.25/10/12.5/25/50/100 kHz. RF output is VHF: 5W, UHF: 4W max. Audio output is 500mW max. It features 128 memory channels in 1 memory bank. The KG-UVD1P has split frequency, VOX, alpha tags, 1750 Hz tone, CTCSS / DCS. Dimensions are 105 × 58 × 38 mm and it weighs 250 gr.

General characteristics

HAM bands: 6m 2m 70cm
Frequency stability: ±2.5ppm
Tuning steps: 5/6.25/10/12.5/25/50/100 kHz
Memories: 128 channels in 1 bank(s)

Receiver

RX-range: 136-174 / 350-470 MHz
136-174 / 400-480 MHz
136-174 / 420-520 MHz
136-174 / 245-250 MHz
136-174 / 216-280 MHz
136-174 / 225-226 MHz
144-146 / 430-440 MHz
76-108 MHz (RX only)
Modulations: FM N-FM
Sensitivity: 0.16µV (12dB SINAD)
Selectivity: 12.5 / 25 kHz
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 500mW max

Transmitter

TX-range: 136-174 / 350-470 MHz
136-174 / 400-480 MHz
136-174 / 420-520 MHz
136-174 / 245-250 MHz
136-174 / 216-280 MHz
136-174 / 225-226 MHz
144-146 / 430-440 MHz
76-108 MHz (RX only)
Modulations: FM N-FM
RF-output: VHF: 5W, UHF: 4W max

Connections

Antenna: SMA
Impedance: 50Ω
Other: -

Electrical

Power requirements: 7.4V DC
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 58 × 105 × 38 mm (2.28 × 4.13 × 1.50 in)
Weight: 250 gr (8.8 oz)
Form factor: Handheld
Manufactured: Between 2009 and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Split frequency
VOX
Alpha tags
1750 Hz tone
CTCSS / DCS
Accessories: -
RigReference ID: 4547
MPN: WOUXUN-KG-UVD000001P

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: Wouxun KG-UVD1P Owner's Manual PDF - 12.89 MB, submitted by Mike

: Upload relevant documents

Reviews

Rating	Title	Submitted
	Good, compact little radio.	5 years ago by Mike
	Wouxun	15 years ago by mkdm0

View all Wouxun KG-UVD1P reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Wouxun KG-UVD1P. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Wouxun KG-UVD1P in Good condition is around:

USD 82
EUR 98
AUD 113 ~ AUD 120

Price History Chart

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
2013	USD 109.00	New / Mint	drguyor
2010	EUR 98.00	New / Good	thiecom.de
2010	AUD 160.00	New / Mint	Mike
2010	AUD 150.00	New / Mint	Mike
