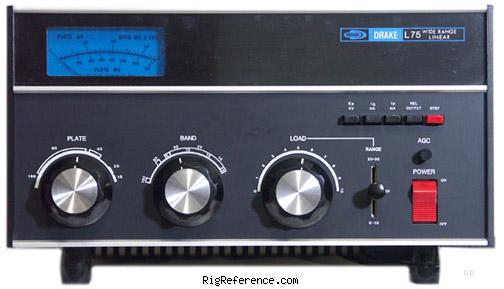

The Drake L-75 provides 1200 watts input on SSB and 1000 watts on CW (50% duty cycle). It covers 160, 80, 40, 20 and 15 meters. This amp employs the Eimac 3-500Z triode. There is a by-pass switch. Drive power is 100 watts PEP on SSB and 75 watts on CW/AM/RTTY. Power requirements are 115 V AC 50-60 Hz 20 amps or 230 V AC 50-60 Hz 10 amps. The power supply is built in. This amp features a temperature controlled, two speed fan.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Transmitter
- TX-range
- 160-15 m
- Modulations
- AM CW RTTY
- RF-output
- 1200W SSB, 1000W CW, both input

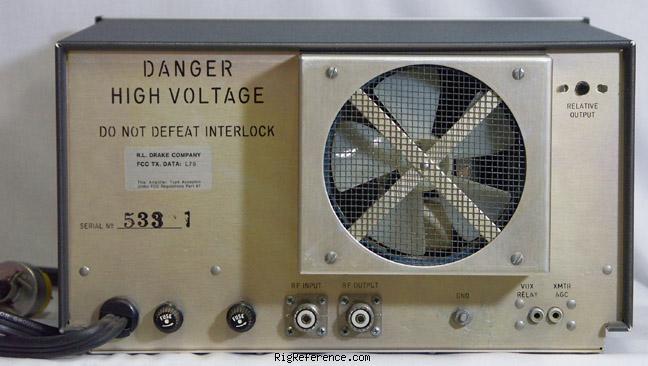

Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 348 × 162 × 362 mm (13.70 × 6.38 × 14.25 in)
- Weight
- 19.50 kg (43.0 lbs)
- Form factor
- Base Station
- Manufactured
- Between and
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5496
- MPN
- DRAKE-L000075
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake L75. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Linear Amplifier equipment, the estimated value of the Drake L75 is around:
- USD 496 ~ USD 920
This estimate is based on similar equipment and may not reflect the exact value of this model.
