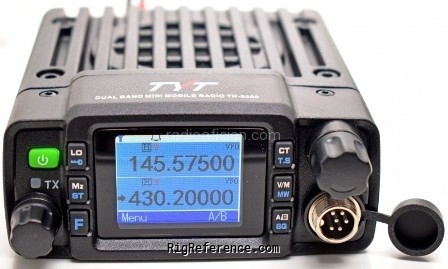

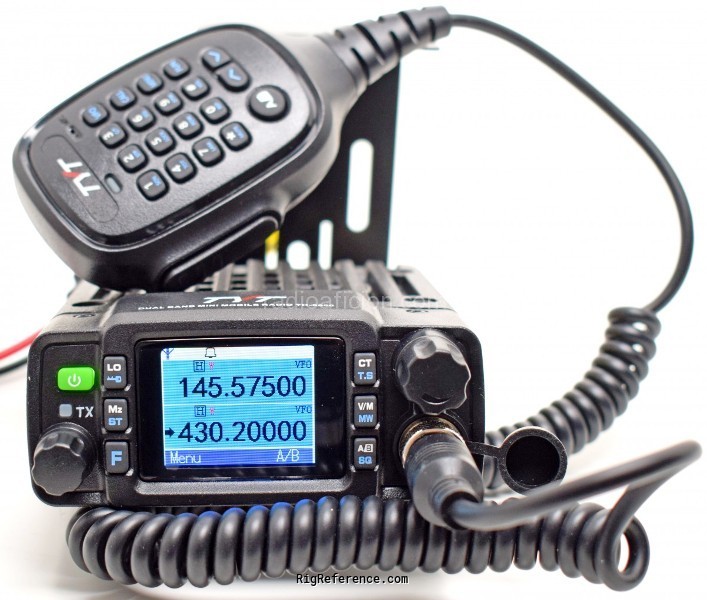

The TH-8600 is a powerful dual band, dual display and dual standby transceiver with 20 watts of power on 400-470MHz UHF and up to 25 watts on 136-174MHz VHF frequencies. It has 200 programmable channels and four programmable function keys so you can maximize flexibility and minimize distraction while you operate RX/TX at the wheel.
The TH8600 features CTCSS and DSC encode/decode, DTMF encoding/decoding, priority channel scanning, and dual band reception. It also features 2Tone/5Tone decoding and encoding, remote kill/stun/activate and a 1750Hz burst tone.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ± 1 p.p.m.
- Tuning steps
- ?
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 136-174 / 400-470 MHz
- Modulations
- FM N-FM
- Sensitivity
- ≤ 0.2 µV (12 dB SINAD)
- Selectivity
- 60 dB @ 12.5 kHz
70 dB @ 25 kHz - Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 4 W @ 8 Ohm for 5% THD
Transmitter
- TX-range
- 136-174 / 400-470 MHz
- Modulations
- FM N-FM
- RF-output
- 25 W
Connections

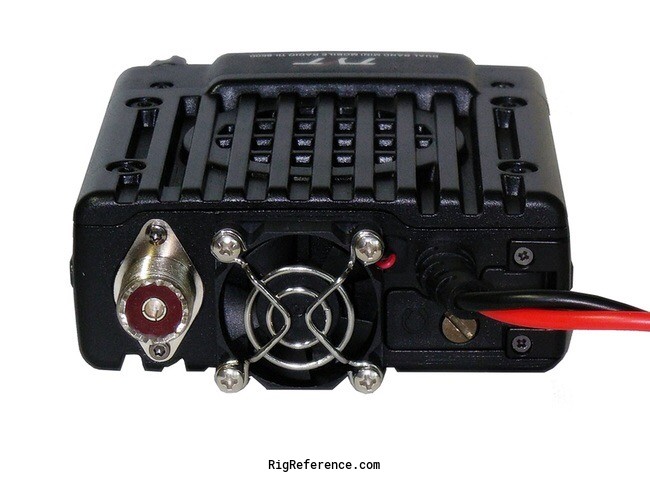

- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 200 mA
- TX
- 4 A
Physical
- Dimensions (w×h×d)
- 107 × 45 × 125 mm (4.21 × 1.77 × 4.92 in)
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 2016 and 20xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Color LCD
IP67 waterproof (optional)
GPS (optional) - Accessories
- -
- RigReference ID
- 6362
- MPN
- TYT-TH-008600
Manuals, diagrams and brochures
- Tyt TH-8600 Instruction Manual PDF - 17.29 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used TYT TH-8600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the TYT TH-8600 is around:
- USD 119.00 ~ USD 99.00
These estimates are based on the following prices:
