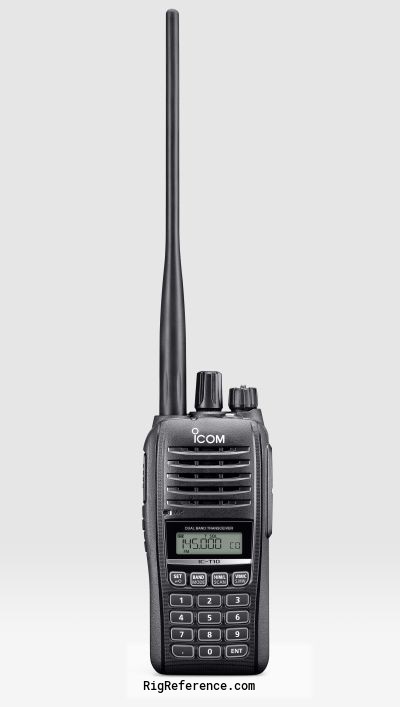

The ICOM IC-T10 is a handheld VHF/UHF transceiver. It covers 76-108 / 136-174 / 400-479 MHz for reception and 136-174 / 430-440 MHz for transmission. The IC-T10 has a maximum RF output of 5/2.5/0.5 W and audio output of 1500 mW. It features 1 memory bank with 208 channels, CTCSS/DTCS, and is IP67 dust-tight and waterproof. The transceiver weighs 278 gr, requires a 7.2 V DC 2400 mAh Li-Ion battery, draws 600 mA in receive mode and 2.5 A max in transmit mode. Dimensions are 111.8 × 52.2 × 30.3 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ±2.5 p.p.m. (–20°C to +60°C on the basis of 25°C )
- Tuning steps
- ?
- Memories
- 208 channels in 1 bank(s)
Receiver
- RX-range
- 76-108 / 136-174 / 400-479 MHz
- Modulations
- FM
- Sensitivity
- Less than 0.18 μV (at 12 dB SINAD
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 1500 mW
Transmitter
- TX-range
- 136-174 / 430-440 MHz
- Modulations
- FM
- RF-output
- 5 / 2.5 / 0.5 W
Connections
- Antenna
- SMA
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.2 V DC 2400 mAh Li-Ion battery
- Current drain RX
- 600 mA
- TX
- 2.5 A max
Physical
- Dimensions (w×h×d)
- 52.2 × 111.8 × 30.3 mm (2.06 × 4.40 × 1.19 in) with BP-280
- Weight
- 278 gr (9.8 oz)
- Form factor
- Handheld
- Manufactured
- Between 2022 and 202x in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- IP67 dust-tight specification and waterproofing
CTCSS/DTCS - Accessories
- -
- RigReference ID
- 6622
- MPN
- ICOM-IC-T000010
Manuals, diagrams and brochures
- Icom IC-T10 flyer PDF - 5.75 MB, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-T10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-T10 in Good condition is around:
- EUR 41
These estimates are based on the following prices:
