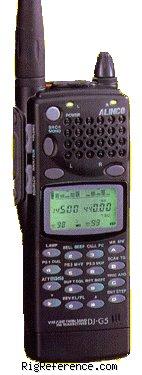

The Alinco DJ-G5E is a handheld VHF/UHF transceiver. It covers 108-174 / 430-450 MHz for reception and 144-146 / 430-440 MHz for transmission. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 38.9 / 45.1 MHz, 2nd: 455 kHz. RF output is 2-5 W and audio output is 100 mW (8 ohms, 10% THD). It features twin RX, full duplex between VHF & UHF, CTCSS / DSC, direct frequency entry, and channel scope. The radio has 1 memory bank with 160 channels. Power requirements are 4-13 V DC. Dimensions are 139 × 57 × 28 mm. Current drain is 25-85 mA (RX) and 1.5 A max. (TX). Weight is 350 gr.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 160 channels in 1 bank(s)
Receiver
- RX-range
- 108-174 / 430-450 MHz
- Modulations
- AM FM
- Sensitivity
- > -16 dBu
- Selectivity
- 12 kHz (-6 dB), 30 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 38.9 / 45.1 MHz
2nd: 455 kHz - Image rejection
- ?
- Audio output
- 100 mW (8 ohms, 10% THD)
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- 2-5 W
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 4-13 V DC
- Current drain RX
- 25-85 mA
- TX
- 1.5 A max.
Physical
- Dimensions (w×h×d)
- 57 × 139 × 28 mm (2.24 × 5.47 × 1.10 in)
- Weight
- 350 gr (12.4 oz)
- Form factor
- Handheld
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
Full duplex between VHF & UHF
CTCSS / DSC
Direct frequency entry
Channel scope - Accessories
- -
- RigReference ID
- 2274
- MPN
- ALINCO-DJ-G000005E
