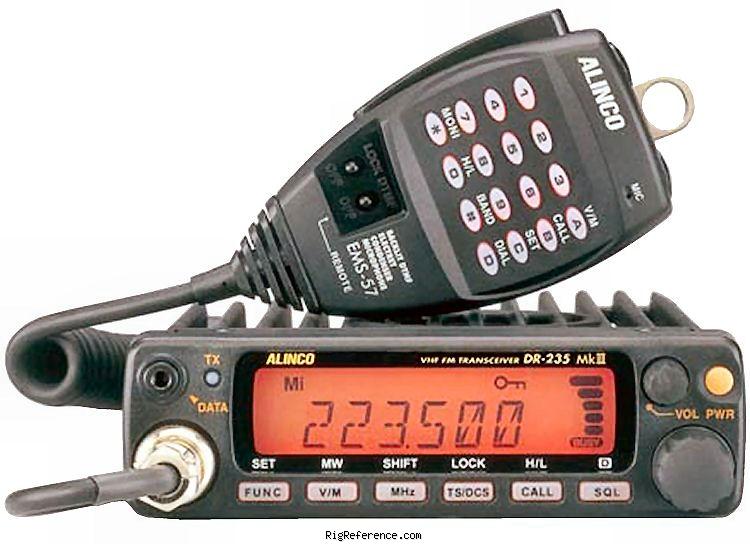

The Alinco DR-235T MKII is a Mobile VHF Transceiver. It covers 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment) and transmits on 222-225 MHz. It has an RF output of High: 25 W, Medium: 10 W, Low: 5 W. It features CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios). The radio weighs 1 kg. Current drain is Max 600 mA while receiving and Max 8 A while transmitting. Dimensions are 40 × 142 × 174 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 101 channels in 1 bank(s)
Receiver
- RX-range
- 216-278 MHz (after modification: RX/TX 200-299.995 MHz depending on VCO alignment)
- Modulations
- FM
- Sensitivity
- 0.25 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 28 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 222-225 MHz
- Modulations
- FM
- RF-output
- High: 25 W, Medium: 10 W, Low: 5 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 600 mA
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 142 × 40 × 174 mm (5.59 × 1.57 × 6.85 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 200x and 2007 in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS, DCS and DTMF. 1K2/9K6 TNC option. Theft alarm Digital voice board option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2320
- MPN
- ALINCO-DR-000235T-MKII
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DR-235T MKII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Alinco DR-235T MKII is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
