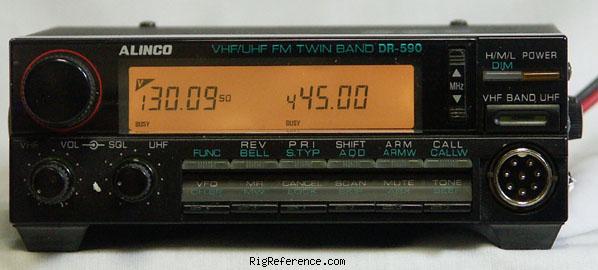

Alinco DR-590T

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

28 channels in 1 bank(s)

Receiver

RX-range

132-170 / 410-470 MHz

Modulations

FM

Sensitivity

-16dB micro (0.16µv) or less (12 dB SINAD)

Selectivity

-6 dB: 6 kHz min., -60 dB: 12 kHz max.

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

.5 watts (8 ohm load) @ 5% distortion

Transmitter

TX-range

144-148 / 440-450 MHz

Modulations

FM

RF-output

High: 45/35 W, Mid: 10/8W, Low: 5/4 W

Connections

Antenna

SO-239

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

1.2A max

TX

10A max

Physical

Dimensions (w×h×d)

150 × 50 × 178 mm (5.91 × 1.97 × 7.01 in)

Weight

1.50 kg (3.3 lbs)

Form factor

Mobile

Manufactured

Between 199x and 199x

Other features

Usage

Amateur / Ham radio operators

Features + options

Detachable head. Twin RX

Accessories

-

RigReference ID

2328

MPN

ALINCO-DR-000590T
