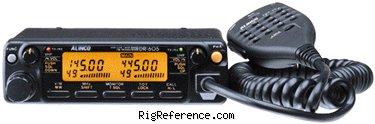

The Alinco DR-605E is a mobile VHF/UHF transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The RF output is High: 50/35 W, Low: 5/5 W. It features 9K6 packet ready and twin RX. Power requirements are 13.8V DC. The current drain is Max 1.2 A while receiving and Max 11.5 A while transmitting. Dimensions are 47 × 140 × 176 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM
- RF-output
- High: 50/35 W, Low: 5/5 W
Connections
- Antenna
- -
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- Max 1.2 A
- TX
- Max 11.5 A
Physical
- Dimensions (w×h×d)
- 140 × 47 × 176 mm (5.51 × 1.85 × 6.93 in)
- Weight
- 1.10 kg (2.4 lbs)
- Form factor
- Mobile
- Manufactured
- Between 19xx and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- 9K6 packet ready. Twin RX
- Accessories
- -
- RigReference ID
- 2331
- MPN
- ALINCO-DR-000605E
Manuals, diagrams and brochures
- Alinco DR-605 Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DR-605 Service manual PDF - Unknown size, submitted by RigReference
