New price 1981 in the US: $3496.00

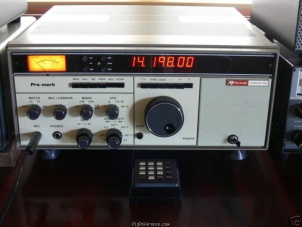

Also used by the military as the Collins HF-380.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
?
Tuning steps
10 Hz
Memories
?

Receiver

RX-range
0.5-30 MHz
Modulations
AM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
Greater than 60 dB
Audio output
?

Transmitter

TX-range
160-10 m
Modulations
CW   USB   LSB
RF-output
Max 100 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
12-15V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
394 × 190 × 457 mm (15.51 × 7.48 × 17.99 in)
Weight
27.20 kg (60.0 lbs)
Form factor
Base Station
Manufactured
Between 198x and 198x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2530
MPN
COLLINS-KWM-000380

Manuals, diagrams and brochures

Collins KWM-380 , HF 380 Service Bulletin PDF - 1.80 MB, submitted by Berend

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Collins KWM-380. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Collins KWM-380 is around:

  • USD 1623.00 ~ USD 1465.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 1534.99 Used / Okay eBay
2020 USD 1700.00 Used / Good eBay
1981 USD 3496.00 New / Mint RigReference
