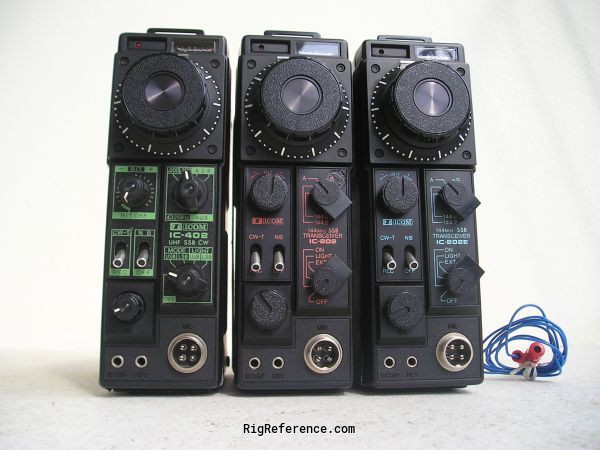

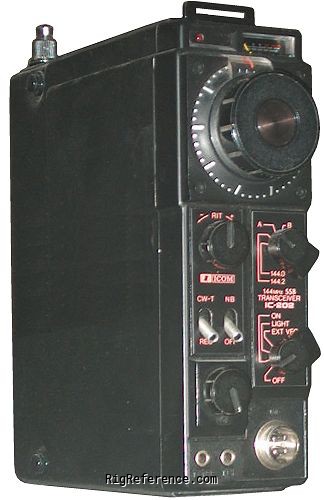

The ICOM IC-202E is a handheld VHF transceiver. It covers the frequency range of 144-146 MHz for both receive and transmit. The RF output power is 3 W. Power requirements are 13.8V DC. Dimensions are 183 × 61 × 162 mm. Current drain is 90-250 mA while receiving and 750 mA while transmitting. It features a VXO.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- CW SSB
- RF-output
- 3 W
Connections
- Antenna
- Built-in sweep
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 90-250 mA
- TX
- 750 mA
Physical
- Dimensions (w×h×d)
- 61 × 183 × 162 mm (2.40 × 7.20 × 6.38 in)
- Weight
- 2.00 kg (4.4 lbs)
- Form factor
- Handheld
- Manufactured
- Between 1977 and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- VXO
- Accessories
- -
- RigReference ID
- 2977
- MPN
- ICOM-IC-000202E
Manuals, diagrams and brochures
- ICOM IC-202 Schematic Diagram-3.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-2.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-1.gif GIF - Unknown size, submitted by RigReference
- ICOM IC-202 Schematic Diagram-4.gif GIF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-202E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the ICOM IC-202E is around:
- USD 224 ~ USD 415
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
