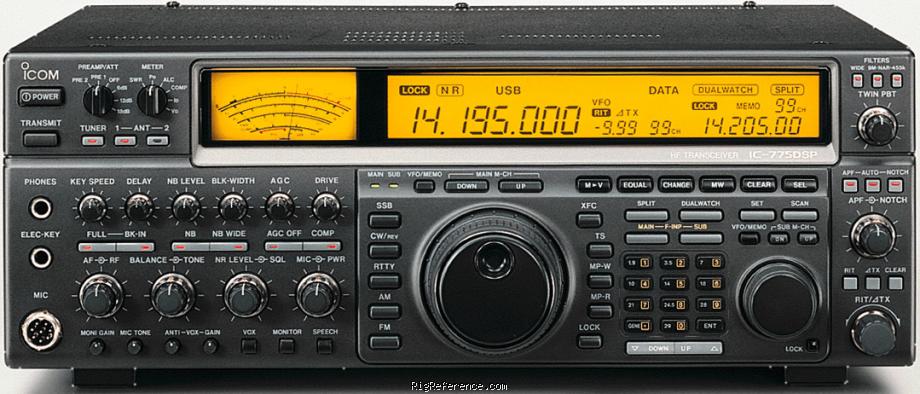

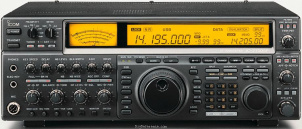

The ICOM IC-775 is the same as the DSP version (ICOM IC-775DSP) but without the UI-100 DSP unit installed.

General characteristics

HAM bands
160m  80m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  10m
Frequency stability
?
Tuning steps
?
Memories
?

Receiver

RX-range
0.1-30 MHz
Modulations
AM   FM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
RF-output
5-200 W (AM 5-50 W)

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (110-240 V AC)
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
424 × 150 × 390 mm (16.69 × 5.91 × 15.35 in)
Weight
16.70 kg (36.8 lbs)
Form factor
Base Station
Manufactured
Between 1995 and 2002 in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Twin RX
Accessories
-
RigReference ID
3169
MPN
ICOM-IC-000775
