This model is virtually identical to the Yaesu FT-80C except this model has a few more buttons (the same buttons are available on the Yaesu FT-80C, but they are hidden), a 500 Hz CW filter and a plastic case cover.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  10m
Frequency stability
SSB/CW/AM: ±200 Hz, FM: ±300 Hz (0°C - 40°C)
Tuning steps
SSB/CW: 25 Hz, AM: 1 kHz, FM: 5 kHz
Memories
20 channels in 1 bank(s)

Receiver

RX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
Sensitivity
SSB/CW: 0.5 µV
AM: 2µV
FM: 0.7 µV (12 dB SINAD)
Selectivity
(-6 dB / -60 dB)
SSB/CW(W)/AM(N): 2.2 / 5 kHz
CW(N): 0.5 / 1.8 kHz
AM(W): 6 / 14 kHz
Filters
500 Hz CW
Receiver system
Double conversion (SSB/CW/AM) Triple conversion (FM)
IF-frequencies
1st: 47.055 MHz
2nd: 8.215 MHz
3rd: 455 kHz (FM-only)
Image rejection
better than 70 dB (1.5-30 MHz)
Audio output
1.5 W

Transmitter

TX-range
10-160 m + WARC
Modulations
AM   FM   CW   SSB
RF-output
SSB/CW/FM: 100 W PEP, AM: 25 W

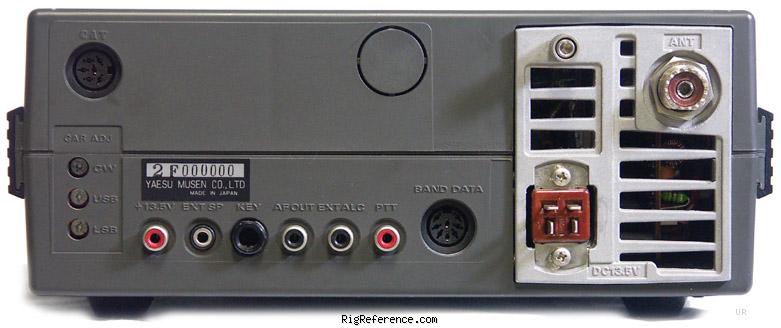

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
238 × 93 × 238 mm (9.37 × 3.66 × 9.37 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Mobile
Manufactured
Between 1987 and 19xx

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4336
MPN
YAESU-FT-000747GX

Manuals, diagrams and brochures

Yaesu FT-747GX Operating Manual PDF - Unknown size, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
All mode HF transceiver 4 years ago by mautas

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-747GX. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-747GX is around:

  • USD 191.00
  • GBP 8.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 200.00 Used / Good mautas
2010 GBP 50.00 Used / Fair ledtoe
