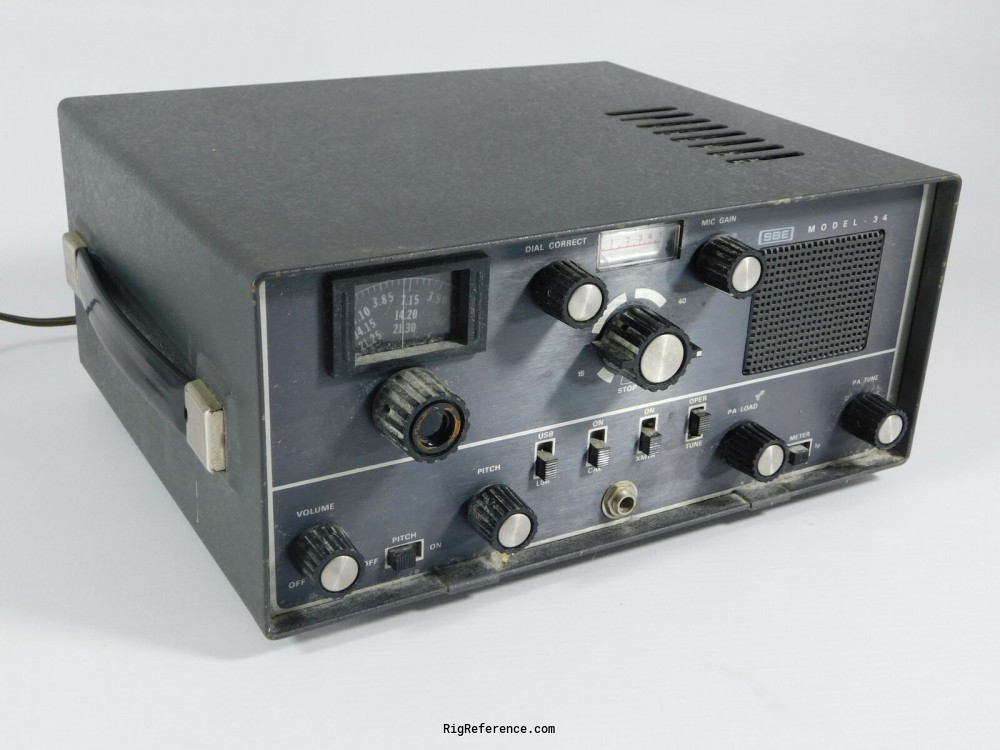

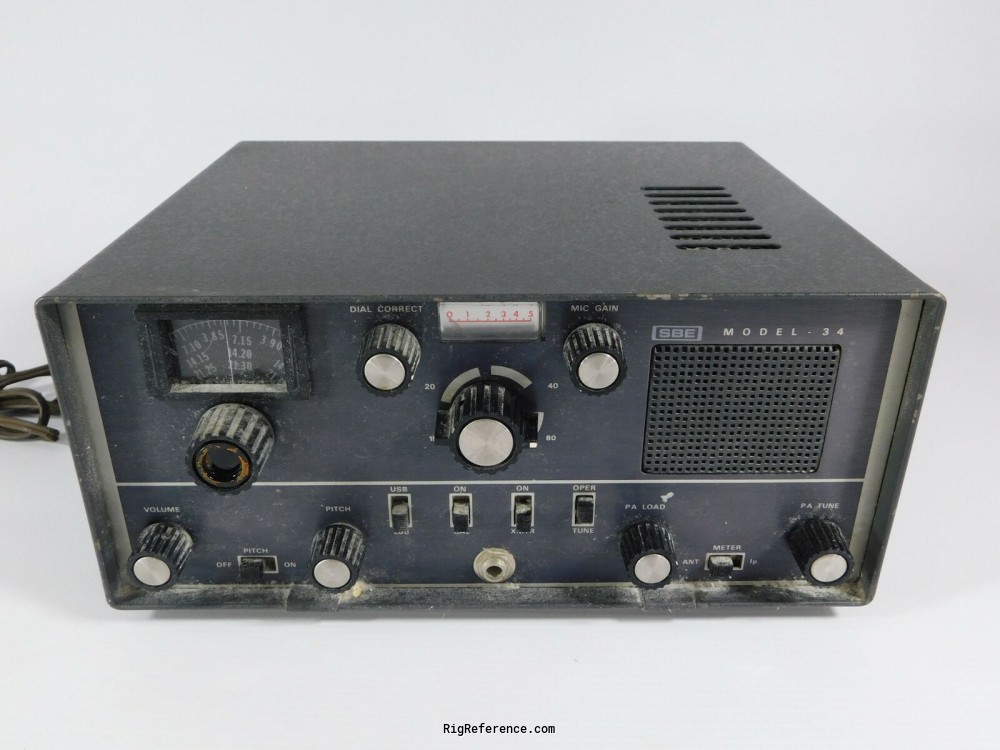

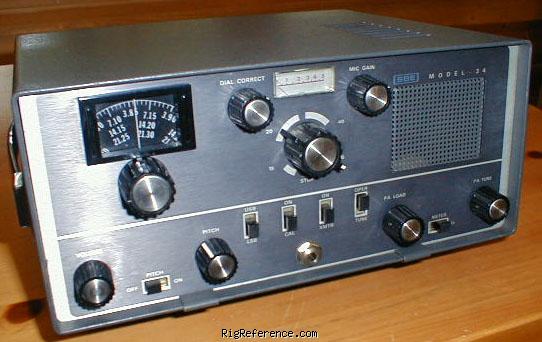

The SBE SB-34 is a single-sideband transceiver.

General characteristics

HAM bands
80m  40m  20m  15m
Frequency stability
?
Tuning steps
?
Memories
None

Receiver

RX-range
80-15 m
Modulations
USB   LSB
Sensitivity
?
Selectivity
2.1 kHz @ -6 dB
4.5 kHz @ -60 dB
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
2 W @ 10% THD

Transmitter

TX-range
80-15 m
Modulations
USB   LSB
RF-output
50~60 W

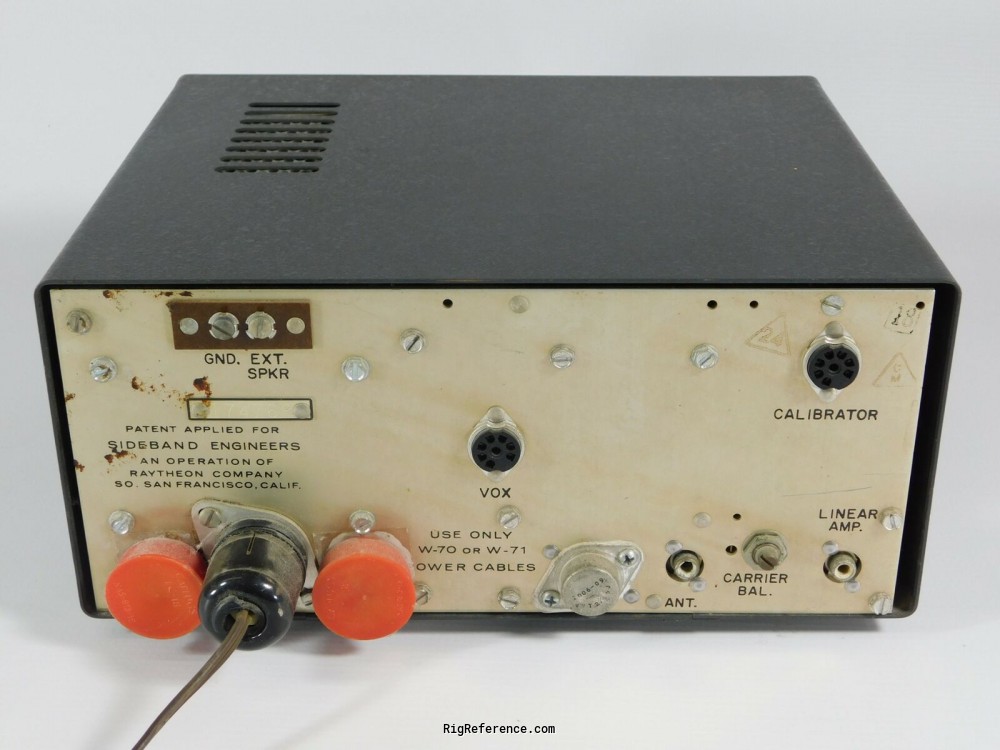

Connections

Antenna
RCA (Tulip)
Impedance
40-100Ω
Other
-

Electrical

Power requirements
Mains or 12 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
295 × 127 × 241 mm (11.61 × 5.00 × 9.49 in)
Weight
8.20 kg (18.1 lbs)
Form factor
Base Station
Manufactured
Between 1966 and 1970

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4524
MPN
SBE-SB-000034

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used SBE SB-34. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the SBE SB-34 is around:

  • USD 45.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 51.00 Used / Good Paul Bates N7PB
