Uniden-Bearcat Four-Six TS

Handheld VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Find Uniden-Bearcat Four-Six TS rigs and spare parts on eBay Find the Uniden-Bearcat Four-Six TS on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

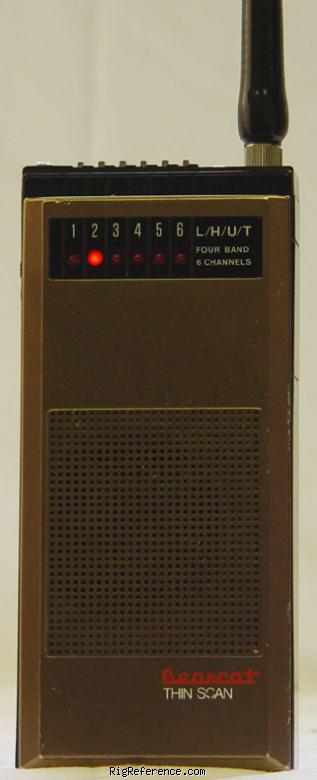

The Bearcat Four-Six TS Thin Scan™ handheld six channel scanner covers four public service bands: 33-47, 152-164, 450-470, 470-508 MHz. Individual channels may be locked out. Scan rate is 8 channels per second. This radio operates from four AAA cells or from external 6 VDC. Audio output is 100mw. There is an earphone jack on the top. The miniature (A-135 type) crystals are not supplied. Supplied with flexible, screw-in (5/16-32) antenna.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
Fixed x-tal channels
Memories
6 channels in 1 bank(s)

Receiver

RX-range
33-47 / 152-164 / 450-470 / 470-508 MHz
Modulations
FM
Sensitivity
VHF: 0.6 µV for 20 dB quieting
UHF: 1.0 µV for 20 dB quieting
Selectivity
?
Filters
?
Receiver system
XTAL
IF-frequencies
?
Image rejection
?
Audio output
100 mW

Connections

Antenna
Proprietary
Impedance
50Ω
Other
-

Electrical

Power requirements
6 V DC (4×AAA)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
70 × 158 × 25 mm (2.76 × 6.22 × 0.98 in)
Weight
225 gr (7.9 oz)
Form factor
Handheld
Manufactured
Between 1979 and 198x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4575
MPN
UNIDEN-BEARCAT-FOUR-SIX-TS

Manuals, diagrams and brochures

Bearcat Thin Scan (BC Four SIX TS) User Manual PDF - 1.92 MB, submitted by RigReference
