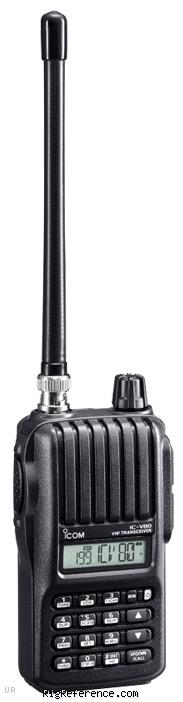

The Icom IC-V80 offers rugged, basic 2 meter performance in a rock solid handheld package. You can select 5.5, 2.5 or 0.5 watts of output. Extended receive is 136 to 174 MHz (USA version only). Enjoy built-in CTCSS/DTCS Encode and Decode. 207 memory channels are featured including 6 scan edge and 1 call. And each memory can be labeled with up to 5 characters. Multiple scan types are available. The easy-to-use controls are very intuitive. The display backlighting may be set for On, Off or Off after 15 seconds of inactivity. There are also DTMF memory channels. Other enhancements include: wide/narrow selectivity, removable jack cover, 750 mW of audio, backlit alpha display, weather channel alert (USA version), keypad, repeater lock-out, auto-repeater function, time-out timer and auto power off.

General characteristics

HAM bands
2m
Frequency stability
±2.5 ppm -12°C to +60°C
Tuning steps
?
Memories
207 channels in 1 bank(s)

Receiver

RX-range
144-146 MHz (Europe)
136-174 MHz (USA)
Modulations
FM   N-FM
Sensitivity
0.14 µV typical
Selectivity
70/50dB (Wide/Narrow) typica
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 21.7 MHz
2nd: 450 kHz
Image rejection
75 dB typical
Audio output
750 mW typ. with an 16 ohm load

Transmitter

TX-range
144-146 MHz
Modulations
FM   N-FM
RF-output
0.5 / 2.5 / 5 W

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
7.2V DC
Current drain RX
20-310 mA
TX
1.4 A max

Physical

Dimensions (w×h×d)
58 × 112 × 30 mm (2.28 × 4.41 × 1.18 in)
Weight
360 gr (12.7 oz) with BP-264
Form factor
Handheld
Manufactured
Between 200x and 200x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
5121
MPN
ICOM-IC-V000080

Manuals, diagrams and brochures

ICOM IC-V80 Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
ICOM IC-V80(E) Brochure PDF - 362.7 kB, submitted by Yudi Anto

Upload relevant documents

Reviews & stories

Rating Title Submitted
Icom IC-V80 10 years ago by sanedraCDJ

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-V80. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-V80 is around:

  • EUR 19.00 ~ EUR 36.00
  • USD 43.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2014 USD 108.99 New / Mint sanedraCDJ
2014 USD 108.99 New / Mint sanedraCDJ
2013 EUR 115.00 New / Mint thiecom.de
2010 EUR 119.00 New / Good thiecom.de
