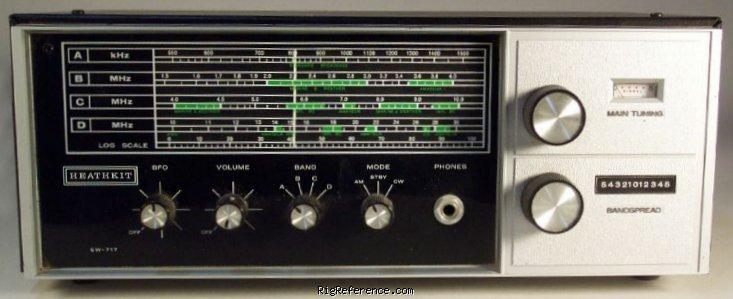

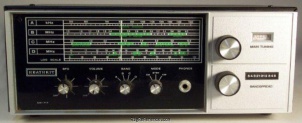

Low End or Beginners Receiver. The solid state design replaced the Heathkit GR-64 that was introduced in 1964.

General characteristics

HAM bands
160m  80m  40m  20m  15m  10m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
550 kHz - 30 MHz in 4 bands
Modulations
AM   CW   SSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
? conversion superheterodyne
IF-frequencies
455 kHz
Image rejection
?
Audio output
Internal speaker

Connections

Antenna
Clamps / screws
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (110/220 V AC)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
368 × 148 × 203 mm (14.49 × 5.83 × 7.99 in)
Weight
3.40 kg (7.5 lbs)
Form factor
Base Station
Manufactured
Between 1971 and 1982 in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
BFO
S-Meter
Accessories
-
RigReference ID
5348
MPN
HEATHKIT-SW-000717

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit SW-717. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit SW-717 is around:

  • USD 1.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1971 USD 140.00 New / Mint RigReference
