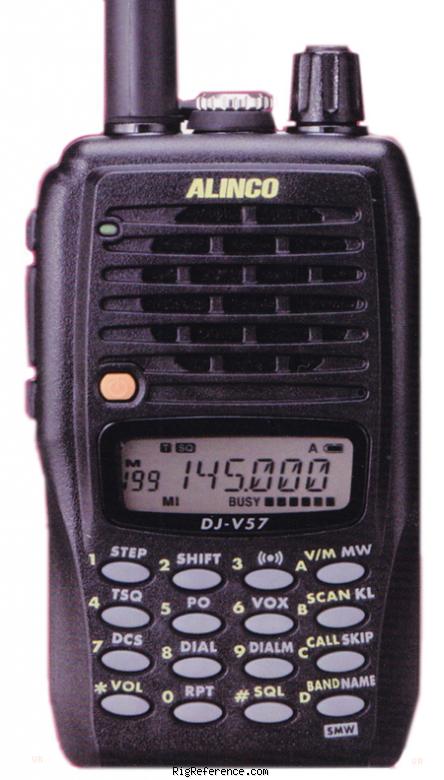

2m / 70cm (440) HT

General characteristics

HAM bands
2m  70cm
Frequency stability
± 2.5 p.p.m.
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz
Memories
200 channels in 1 bank(s)

Receiver

RX-range
136-173.995 / 400-511.995 MHz
Modulations
FM
Sensitivity
-14 dBu / -12 dBu (12 dB SINAD)
Selectivity
12 kHz (-6 dB) / 35 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 38.85 MHz
2nd: 450 KHz
Image rejection
?
Audio output
500 mW (max) 8 Ω, 10% THD)

Transmitter

TX-range
144-147.995 / 420-449.995 MHz
Modulations
FM
RF-output
5 / 2 / 0.5 W

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
7.0-16.0 V DC (Ext. DC-IN) 7.2 V 700 mAH battery
Current drain RX
250 mA
TX
1.6 / 1.9A

Physical

Dimensions (w×h×d)
58 × 110 × 34 mm (2.28 × 4.33 × 1.34 in)
Weight
272 gr (9.6 oz) with EBP-63 & antenna
Form factor
Handheld
Manufactured
Between 2011 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
Waterproof to IPX7 standard (can be submersed in 3 feet of water for up to 30 minutes)
39 CTCSS Tone Squelch
104 DCS Digital Code Squelch
4 tone Bursts
9 DTMF AutoDial Memories
Built-in Speaker
Illuminated Keypad
Time-out Timer
Internal VOX
Accessories
-
RigReference ID
5531
MPN
ALINCO-DJ-V000057T
