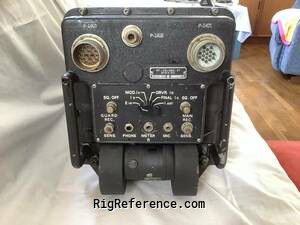

The Military AN/ARC-27 was a military UHF AM radio that operated between 225.0-399.9 MHz and transmitted at 9 watts. It featured a separate guard receiver for monitoring 243 MHz, while simultaneously monitoring the active channel selected. The radio utilized vacuum tubes and was pressurized to prevent electrical arcing at high altitudes.

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?
Memories
18 channels in 1 bank(s)

Receiver

RX-range
225-400 MHz
Modulations
AM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
225-400 MHz
Modulations
AM
RF-output
9 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
?
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 194x and 195x in USA

Other features

Usage
Air-to-air / air-to-ground communication
Features + options
-
Accessories
-
RigReference ID
5686
MPN
MILITARY-AN/ARC-000027
