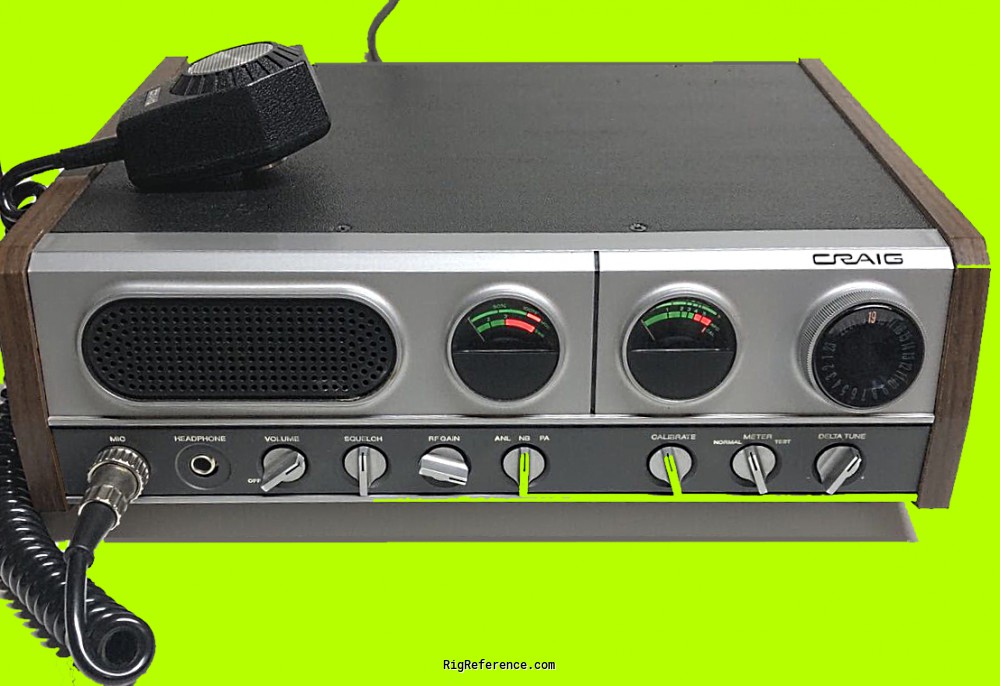

Craig 4201

General characteristics

HAM bands

11m (CB)

Frequency stability

?

Tuning steps

Channelized

Memories

23 channels in 1 bank(s)

Receiver

RX-range

26.965-27.255 MHz

Modulations

AM

Sensitivity

0.5 µV (10 dB S+N/N)

Selectivity

6 kHz (-6 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

?

Image rejection

?

Audio output

4 W

Transmitter

TX-range

26.965-27.255 MHz

Modulations

AM

RF-output

~3.5 W (5 W input)

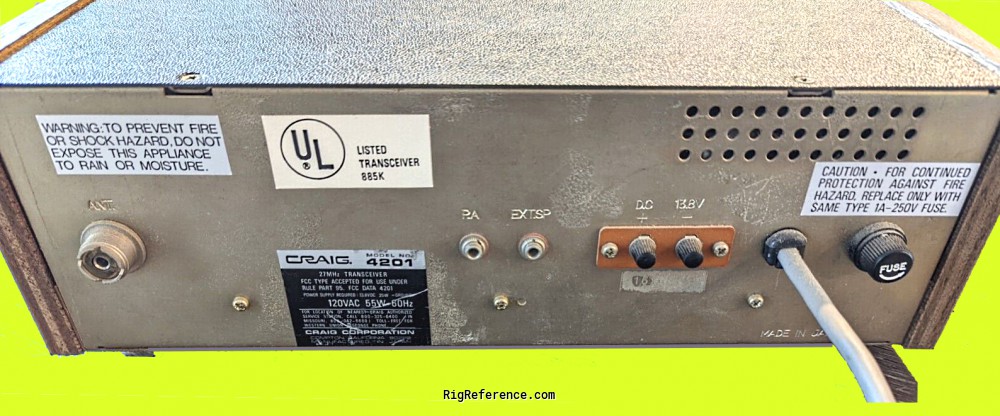

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8 V DC or main

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

?

Weight

?

Form factor

Base Station

Manufactured

Between 197x and 197x in Japan

Other features

Usage

Citizen Band (27Mc)

Features + options

PA
ANL/NB
Delta tune (1 kHz)
SWR-meter

Accessories

-

RigReference ID

5725

MPN

CRAIG-004201
