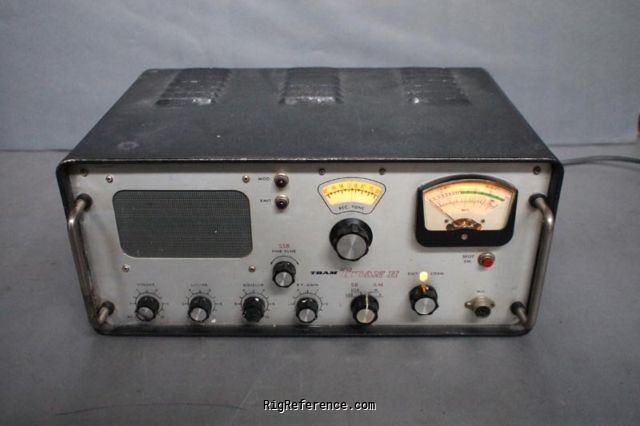

Vintage 23-channel CB transceiver made between 1967 and 1969 by the Tram Corporation, Winnisquam, N.H 03209. Special features include ± 1 kHz tuning of RX-frequencies and Double Side Band (DSB) operation. The set came with 23 crystals as stock.
General characteristics
- HAM bands
- 11m (CB)
- Frequency stability
- ?
- Tuning steps
- Channelized
- Memories
- 23 channels in 1 bank(s)
Receiver
- RX-range
- 26.965-27.225 MHz
- Modulations
- AM USB LSB DSB
- Sensitivity
- AM: 3 µV
DSB: 3 µV - Selectivity
- 6 kHz @ -6 dB
- Filters
- Collins mechanical filter in front end
- Receiver system
- Capacitor tuning
- IF-frequencies
- 1st: 4245/4535 kHz
2nd: 455 kHz - Image rejection
- ≥ 65 dB
- Audio output
- 1 W (1.8% THD) ~ 4 W (5.4 THD)
Transmitter
- TX-range
- 26.965-27.225 MHz
- Modulations
- AM DSB
- RF-output
- AM: 2-3 W / DSB: 8-10 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- Mains (115 V AC ±10%, 50-60 Hz)
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1967 and 1969
Other features
- Usage
- Citizen Band (27Mc)
- Features + options
- -
- Accessories
- -
- RigReference ID
- 5836
- MPN
- TRAM-TITAN-II
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Tram Titan II. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Tram Titan II is around:
- USD 246.00
These estimates are based on the following prices:
