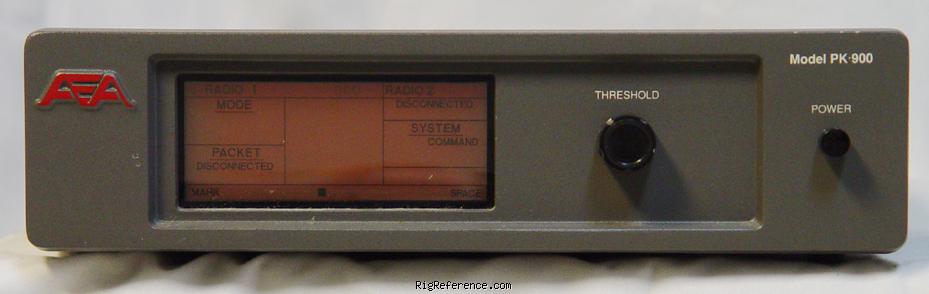

The AEA PK-900 has 2 input ports, HF and VHF. It uses 3 dedicated processors to send and receive a range of digital packet formats including Morse, RTTY and fax. Speeds between 45 and 19,200 baud are supported.
General characteristics
- HAM bands
- None
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- NAVTEX, SIAM, ARQ E3, WEFAX
- Modulations
- NAVTEX
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- Morse, Baudot, Packet, Packet Lite, PACTOR, ASCII, AMTOR, FEX, ARQL, B&W FAX
- Modulations
- -
- RF-output
- ?

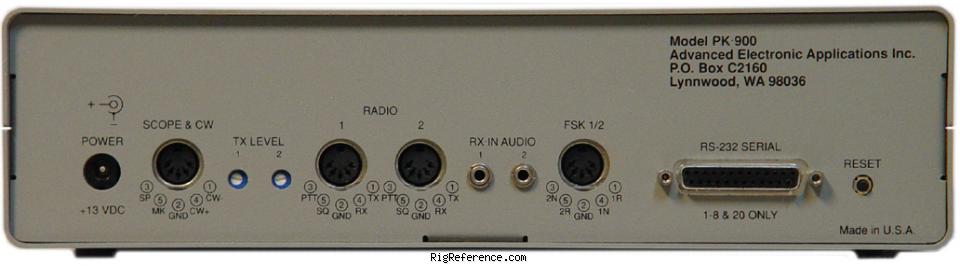

Connections
- Antenna
- -
- Impedance
- ?
- Other
- 5-pin DIN connectors
Electrical
- Power requirements
- 12~16 V DC
- Current drain RX
- 1100 mA
- TX
- ?
Physical
- Dimensions (w×h×d)
- 300 × 300 × 89 mm (11.81 × 11.81 × 3.50 in)
- Weight
- 2.09 kg (4.6 lbs)
- Form factor
- Base Station
- Manufactured
- Between and
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Hitachi 64180 CPU
Motorola 68H05C4 DDS
Motorola 68H05B4 display controller - Accessories
- -
- RigReference ID
- 5967
- MPN
- AEA-PK-000900
Manuals, diagrams and brochures
-
No documents available for this particular model.
