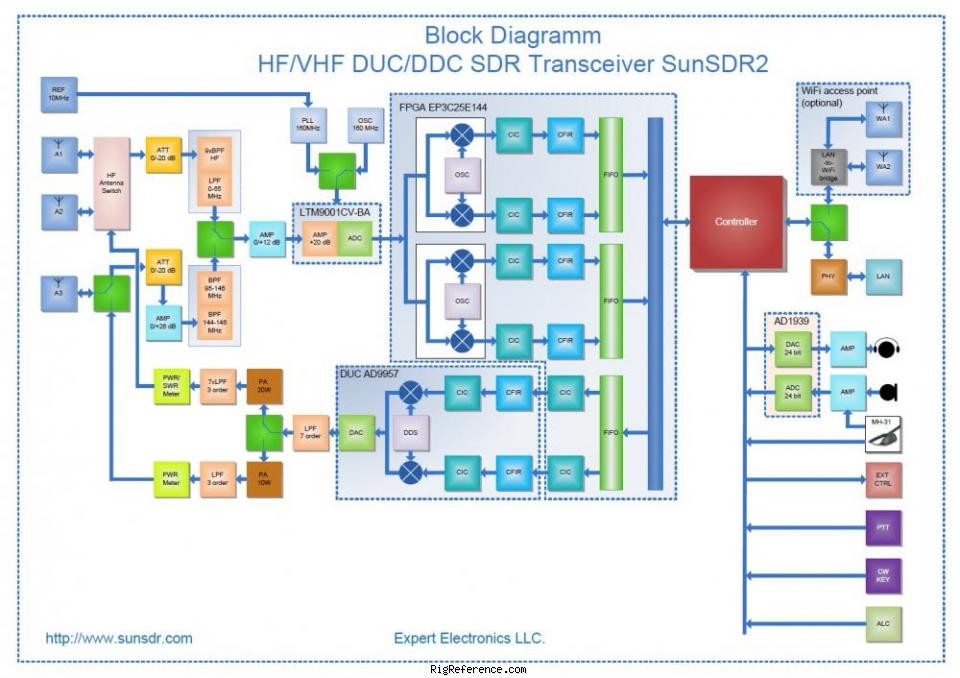

The Expert Electronics SunSDR2 PRO is a direct sampling SDR transceiver covering all HF bands plus 50 MHz and 144 MHz VHF bands. Remote control over DSL or mobile 3G and 4G connections provide a full SDR experience using the Expert Remote System.

Price when new: EUR 1840.- (with WLAN)

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  10m
Frequency stability
+/- 2.5 p.p.m.
Tuning steps
Software defined
Memories
10000 channels in 10000 bank(s)

Receiver

RX-range
0.01-65 / 95-148 MHz (300 MHz with oversampling)
Modulations
AM   AM-sync   N-FM   W-FM   CW   USB   LSB   DSB   Multiple (Software defined)
Sensitivity
70 nV (with preamp)
Selectivity
?
Filters
?
Receiver system
Direct Down Conversion, SDR
IF-frequencies
Software defined
Image rejection
≥ 90 dB
Audio output
Through computer

Transmitter

TX-range
0.01-65 / 95-148 MHz (300 MHz with oversampling)
Modulations
AM   AM-sync   N-FM   W-FM   CW   USB   LSB   DSB
RF-output
HF: 15 W, VHF: 8 W

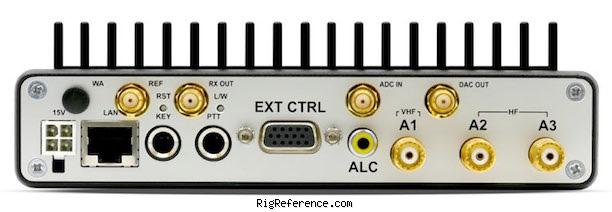

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
10 to 15 V DC
Current drain RX
?
TX
3A max

Physical

Dimensions (w×h×d)
165 × 100 × 35 mm (6.50 × 3.94 × 1.38 in)
Weight
500 gr (1.1 lbs)
Form factor
Headless
Manufactured
Between 2017 and 20xx in Russia

Other features

Usage
Amateur / Ham radio operators
Features + options
Bandscope width: 20 kHz to 80 MHz
WLAN optional, 100 Mpbs
DAC converter: 14 bit 640 MSPS
8 programmable transistor switches for external equipment

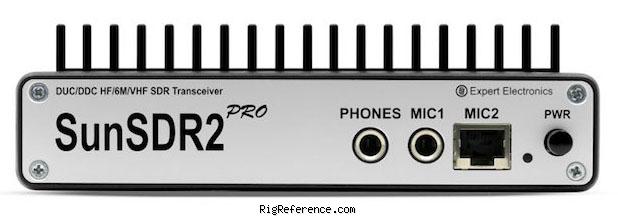

Modular microphone input for Yaesu MH-31
Accessories
-
RigReference ID
6148
MPN
EXPERT-ELECTRONICS-SUNSDR000002-PRO
