Airborne FM/VHF version of the Army ground radio set AN/VRC-12. The set is capable of operating as a relay for both voice and homing information signals.

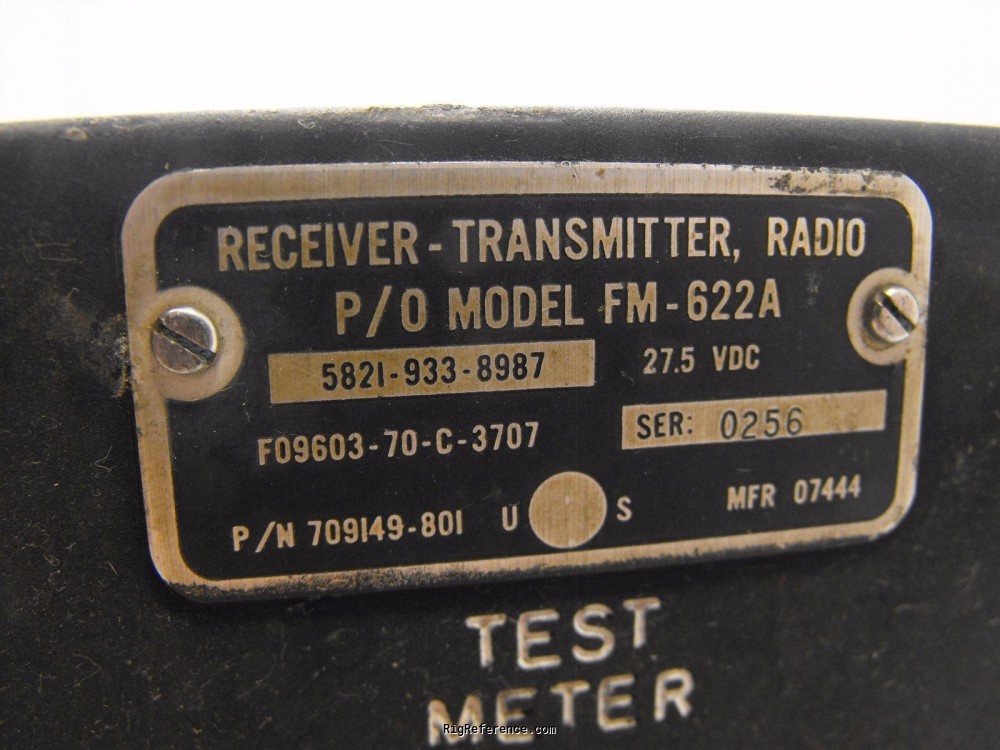

NSN No: 5821-933-8987

General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
50 kHz
Memories
920 channels in 1 bank(s)

Receiver

RX-range
30-75.95 MHz
Modulations
FM
Sensitivity
0.4 µV for 10 dB S+N/N
Selectivity
32 kHz @ -6 dB
85 kHz @ -60 dB
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
30-75.95 MHz
Modulations
FM
RF-output
10 W

Connections

Antenna
Proprietary (military)
Impedance
50Ω
Other
-

Electrical

Power requirements
27.5 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 197x and 197x in USA

Other features

Usage
Military communication
Features + options
-
Accessories
-
RigReference ID
6283
MPN
MILITARY-FM-000622A
