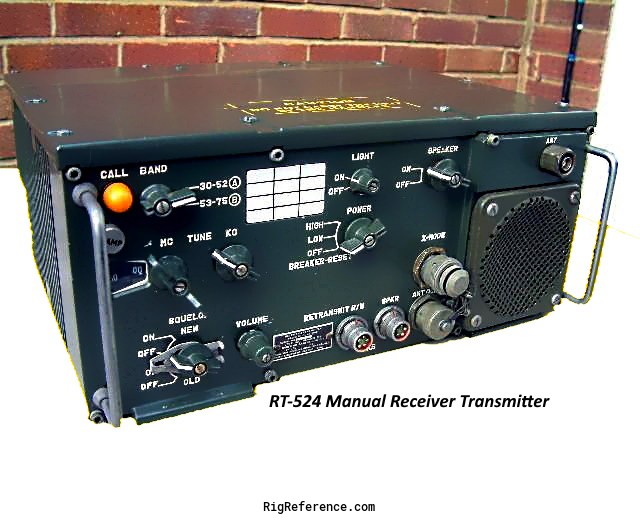

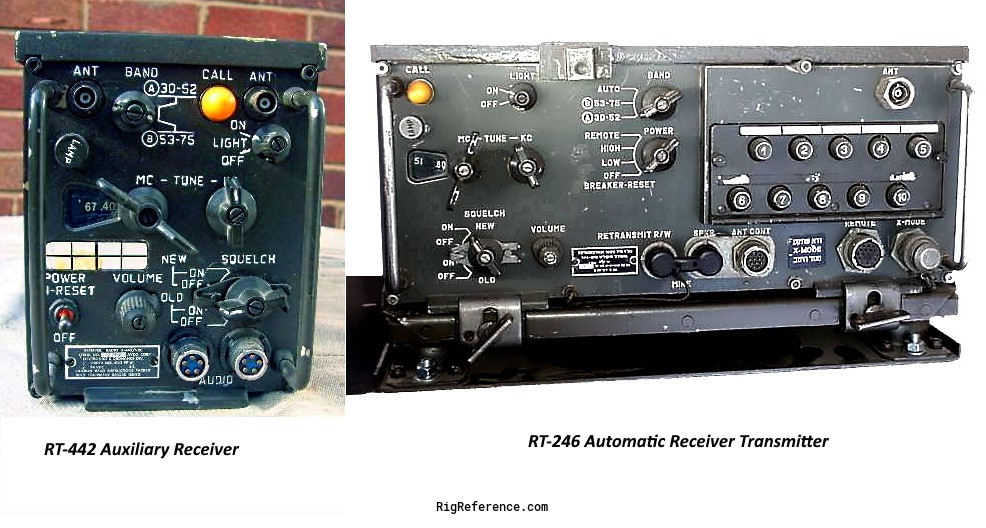

Army ground radio set version of the Military IAI Elta CU2-1250CN. The set is capable of operating as a relay for both voice and homing information signals.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 50 kHz
- Memories
- 920 channels in 1 bank(s)
Receiver
- RX-range
- 30-75.95 MHz
- Modulations
- FM
- Sensitivity
- 0.4 µV for 10 dB S+N/N
- Selectivity
- 32 kHz @ -6 dB
85 kHz @ -60 dB - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 30-75.95 MHz
- Modulations
- FM
- RF-output
- 10 W
Connections
- Antenna
- Proprietary (military)
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 27.5 V DC
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Mobile
- Manufactured
- Between 197x and 197x in USA
Other features
- Usage
- Military communication
- Features + options
- -
- Accessories
- -
- RigReference ID
- 6285
- MPN
- MILITARY-AN/VRC-000012
Manuals, diagrams and brochures
- RT-246A Technical Manual PDF - 5.21 MB, submitted by Pancho Cheja
- AN VRC-12 Operator'S Manual PDF - 6.47 MB, submitted by Pancho Cheja
- Anvrc-12 Description JPEG - 1.31 MB, submitted by Pancho Cheja
