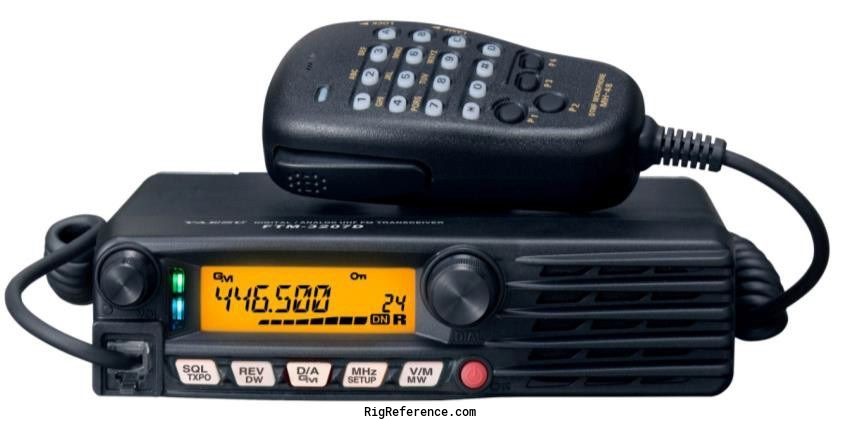

Same platform as the Yaesu FTM-3200DR, but with UHF frequency range.

General characteristics

HAM bands
70cm
Frequency stability
?
Tuning steps
?
Memories
221 channels in 1 bank(s)

Receiver

RX-range
420-470 MHz
Modulations
FM   AFSK   C4FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 47.25 MHz
2nd: 450 kHz
Image rejection
?
Audio output
3 W

Transmitter

TX-range
430-450 MHz
Modulations
FM   AFSK   C4FM
RF-output
55 / 25 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
11.7-15.8 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
154 × 43 × 155 mm (6.06 × 1.69 × 6.10 in)
Weight
1.30 kg (2.9 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 20xx

Other features

Usage
Amateur / Ham radio operators
Features + options
- Genuine 55 W Output Power with FACC: Funnel Air-Convection Conductor (Wind Tunnel)
- Advanced Digital C4FM operation
- System Fusion Compatible
- AMS (Automatic Mode Select) function automatically recognizes the signal as C4FM digital or conventional FM
- Sophisticated Digital-Group-ID Operation
- Loud 3 Watts of Audio Output Power with the Front Speaker for noisy environments
- Bright Multi-colored LED Mode-Indicator for easy operation
- Four Programmable keys on the microphone allow one-touch acc
Accessories
-
RigReference ID
6291
MPN
YAESU-FTM-003207DR
