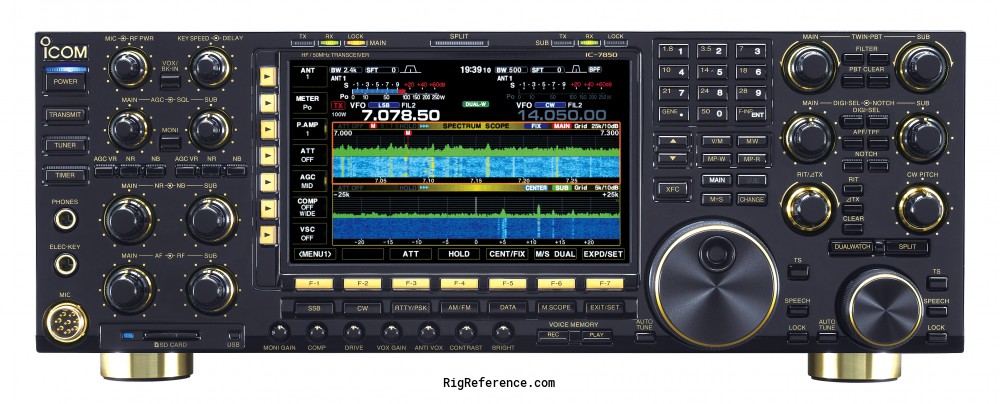

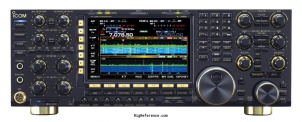

Icom 50th anniversary limited edition. Only about 150 units where produced.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  2000m
Frequency stability
≥ ±0.05 p.p.m.
Tuning steps
1 Hz minimum
Memories
?

Receiver

RX-range
0.03-60 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB, CW, RTTY, PSK (BW=2.4 kHz, 10 dB S/N)
0.100–1.799 MHz 0.5 µV (pre-amp 1 ON)
1.800–29.990 MHz 0.16 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.13 µV (pre-amp 2 ON)
AM (BW=6 kHz, 10 dB S/N)
0.100–1.799 MHz 6.3 µV (pre-amp 1 ON)
1.800–29.990 MHz 2 µV (pre-amp 1 ON)
50.000–54.000 MHz 1 µV (pre-amp 2 ON)
FM (BW=15 kHz, 12 dB SINAD)
28.000–29.990 MHz 0.5 µV (pre-amp 1 ON)
50.000–54.000 MHz 0.32 µV (pre-amp 2 ON)
Selectivity
SSB, RTTY (BW=2.4 kHz) More than 2.4 kHz/–3 dB
Less than 3.6 kHz/–60 dB
CW/RTTY/PSK (BW=500 Hz) More than 500 Hz/–3 dB
Less than 700 Hz/–60 dB
AM (BW=6 kHz) More than 6.0 kHz/–3 dB
Less than 15.0 kHz/–60 dB
FM (BW=15 kHz) More than 12.0 kHz/–6 dB
Less than 20.0 kHz/–60 dB
Filters
15 / 6 / 3 / 1.2 kHz
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 64.455 MHz (MAIN band), 64.555 MHz (SUB band)
2nd: 36 kHz
Image rejection
?
Audio output
2.6 W at 10% distortion with an 8 Ω load

Transmitter

TX-range
160-6 m
2000 m option
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-output
5-200 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains (85-265 V AC)
Current drain RX
150 VA
TX
800 VA max

Physical

Dimensions (w×h×d)
425 × 149 × 435 mm (16.73 × 5.87 × 17.13 in)
Weight
23.50 kg (51.8 lbs)
Form factor
Base Station
Manufactured
Between 2014 and 201x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
7-inch display
Waterfall / scope
USB, Ethernet, SP/DIF
SD Card
Antenna tuner
Accessories
-
RigReference ID
6314
MPN
ICOM-IC-007850
