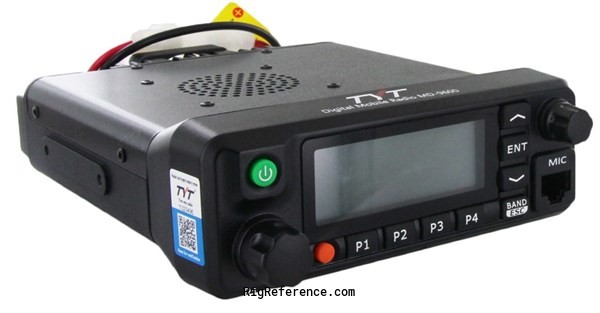

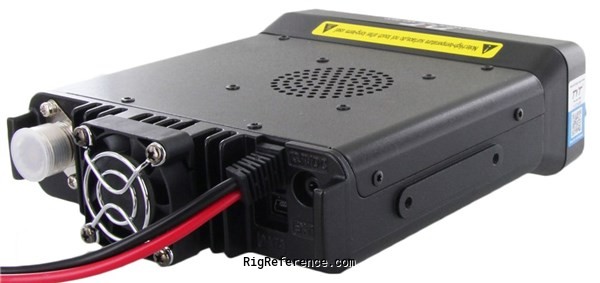

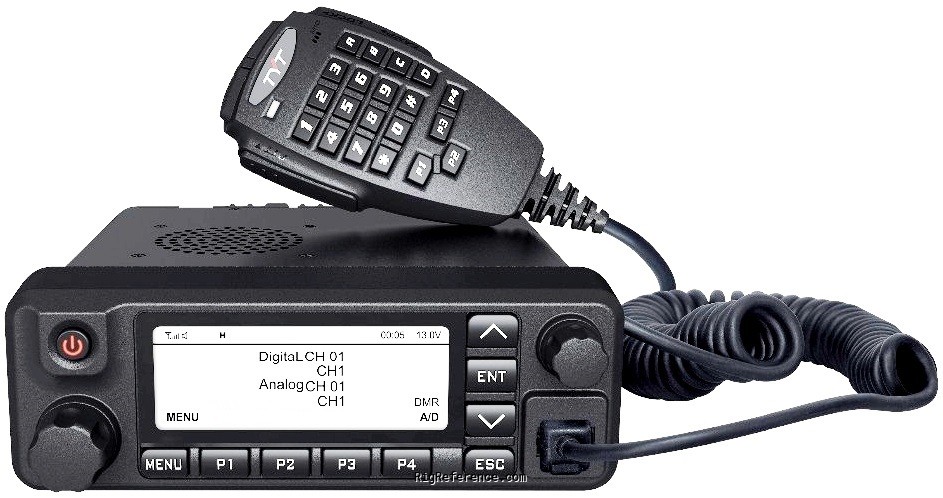

The TYT MD-9600 was specifically designed with the amateur radio operator in mind.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
3000 channels in 1 bank(s)

Receiver

RX-range
136-174 / 400-480 MHz
Modulations
FM   N-FM   DMR
Sensitivity
≤ 0.2 µV (12 dB SINAD)
Selectivity
12 / 30 kHz
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 49.95 / 38.85 kHz
2nd: 450 kHz
Image rejection
?
Audio output
5 W @ 8 Ohm

Transmitter

TX-range
136-174 / 400-480 MHz
Modulations
FM   N-FM   DMR
RF-output
45-50 W

Connections

Antenna
-
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
500 mA
TX
8.5 A

Physical

Dimensions (w×h×d)
?
Weight
1.02 kg (2.3 lbs)
Form factor
Mobile
Manufactured
Between 2017 and 201x in China

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6361
MPN
TYT-MD-009600

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used TYT MD-9600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the TYT MD-9600 is around:

  • USD 190.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 199.00 New / Mint eBay
