General characteristics

HAM bands
70cm
Frequency stability
+/- 2.5 p.p.m.
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 kHz
Memories
1000 channels in 1 bank(s)

Receiver

RX-range
400-480 MHz
Modulations
FM   DMR
Sensitivity
Analog (12 dB SINAD)
25 kHz: 0.2 µV
12.5 kHz: 0.25 µV
Digital (BER)
5%: 0.3 µV
1%: 0.7 µV
Selectivity
12.5 / 20 / 25 kHz (analog)
12.5 kHz (digital/analog)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
1000mW /16Ω @ <= 5% THD

Transmitter

TX-range
400-480 MHz
Modulations
FM   DMR
RF-output
0.2 / 1 / 2.5 / 5 W

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.4 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
62 × 112 × 46 mm (2.44 × 4.41 × 1.81 in)
Weight
305 gr (10.8 oz) with battery and antenna
Form factor
Handheld
Manufactured
Between 2018 and 20xx in China

Other features

Usage
Commercial / Land mobile communication
Features + options
DMR Tier I and Tier II
Text messages

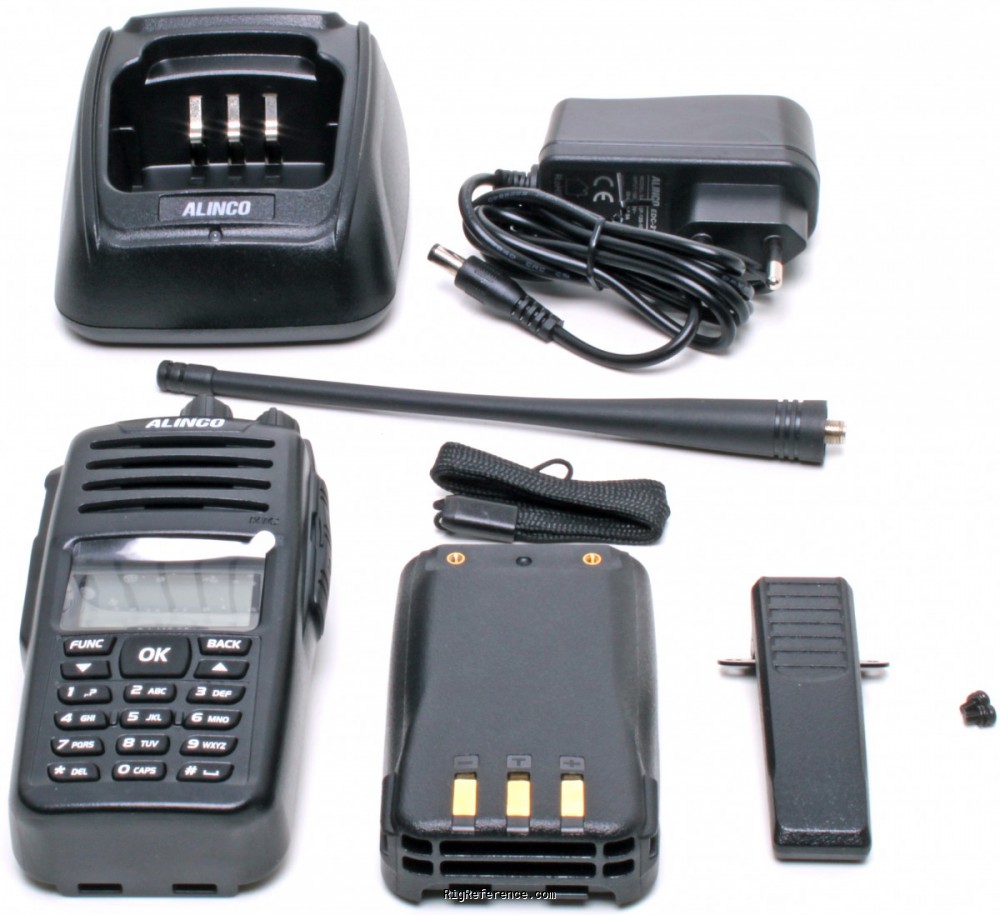

Accessories
-
RigReference ID
6412
MPN
Alinco DJ-MD40
