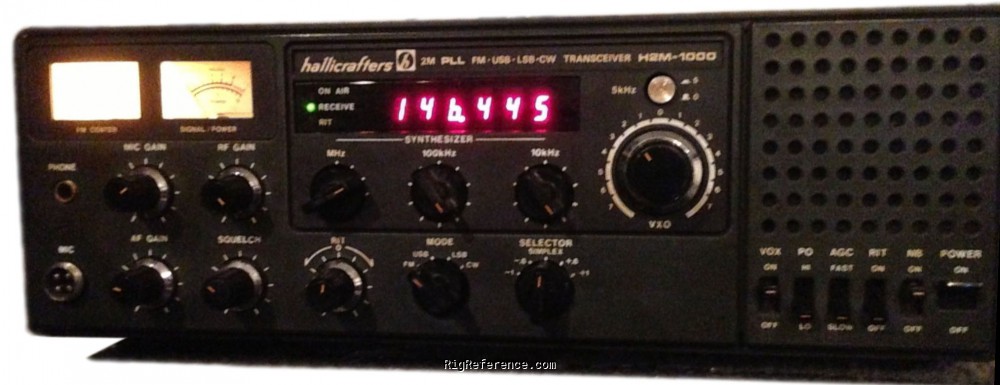

This is most likely a prototype from FDK which was never taken into production by Hallicrafters.

General characteristics

HAM bands
2m
Frequency stability
?
Tuning steps
Continuous
Memories
None

Receiver

RX-range
144-148 MHz
Modulations
FM   CW   USB   LSB
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

TX-range
144-148 MHz
Modulations
FM   CW   USB   LSB
RF-output
1 / 12 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 1977 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
VOX
RIT
NB
Accessories
-
RigReference ID
6476
MPN
HALLICRAFTERS-H000002M-1000
