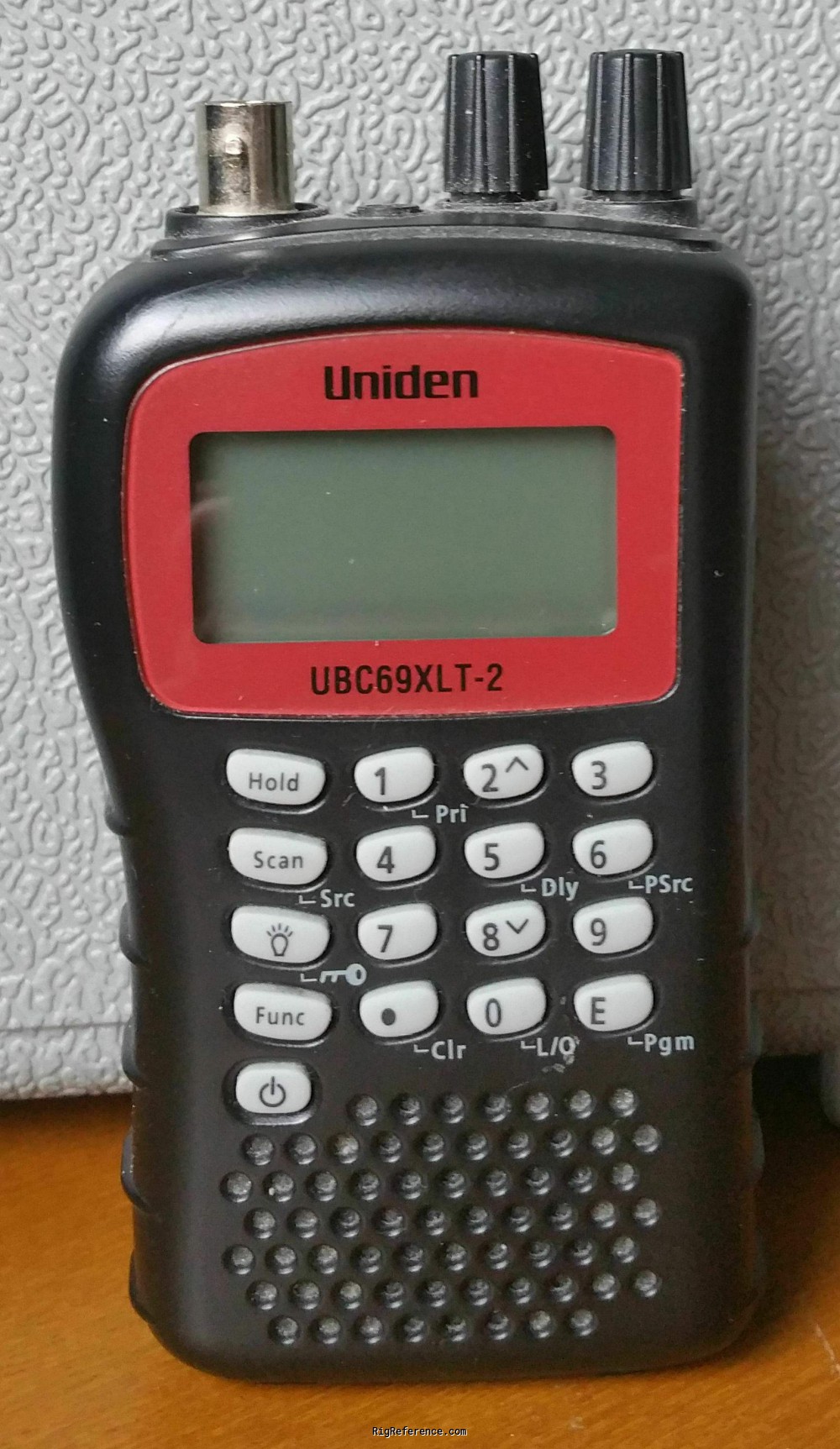

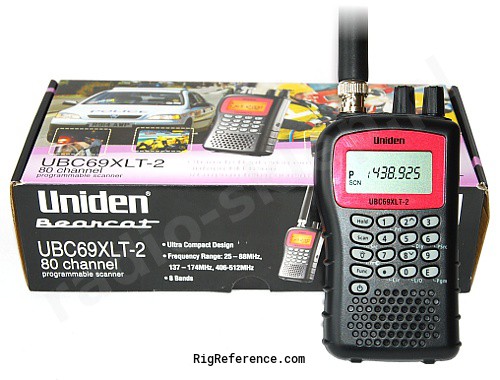

Uniden-Bearcat UBC69XLT-2

Handheld HF/VHF/UHF Scanner / receiver

Add a review Add to my shack


Login or Register to upload images

Find Uniden-Bearcat UBC69XLT-2 rigs and spare parts on eBay Find the Uniden-Bearcat UBC69XLT-2 on Amazon
We receive a small fee if you buy through these links, which helps support this site. Thank you!

General characteristics

HAM bands
11m (CB)  6m  2m  70cm  10m  4m
Frequency stability
?
Tuning steps
5 / 6.25 / 10 / 12.5 / 20 kHz
Memories
80 channels in 5 bank(s) @ 50 channels/second

Receiver

RX-range
25-87 / 137-174 / 406-512 MHz
Modulations
FM
Sensitivity
VHF: 0.3 µV (12 dB SINAD)
UHF: 0.4 µV (12 dB SINAD)
Selectivity
?
Filters
?
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: ~380 MHz
2nd: 21.3 MHz
3rd: 450 kHz
Image rejection
?
Audio output
400 mW at ?% distortion / 8 ohm

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
2.4-3 V DC (2×R6/AA Alkaline or NiMH batteries)
Current drain RX
90-290 mA
TX
-

Physical

Dimensions (w×h×d)
68 × 115 × 32 mm (2.68 × 4.53 × 1.26 in)
Weight
165 gr (5.8 oz)
Form factor
Handheld
Manufactured
Between 20xx and 20xx in Vietnam

Other features

Usage
Amateur / Ham radio operators
Features + options
Backlit display
Accessories
-
RigReference ID
6490
MPN
UNIDEN-BEARCAT-UBC000069XLT-2
