General characteristics

HAM bands
2m
Frequency stability
± 0.002/0.003 %
Tuning steps
?
Memories
12 channels in 1 bank(s)

Receiver

RX-range
144-146 / 145-147 / 146-148 MHz depending on version
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 22 MHz
2nd: 455 MHz
Image rejection
?
Audio output
3 W for external speaker

Transmitter

TX-range
144-146 / 145-147 / 146-148 MHz depending on version
Modulations
FM
RF-output
1 / 10 W

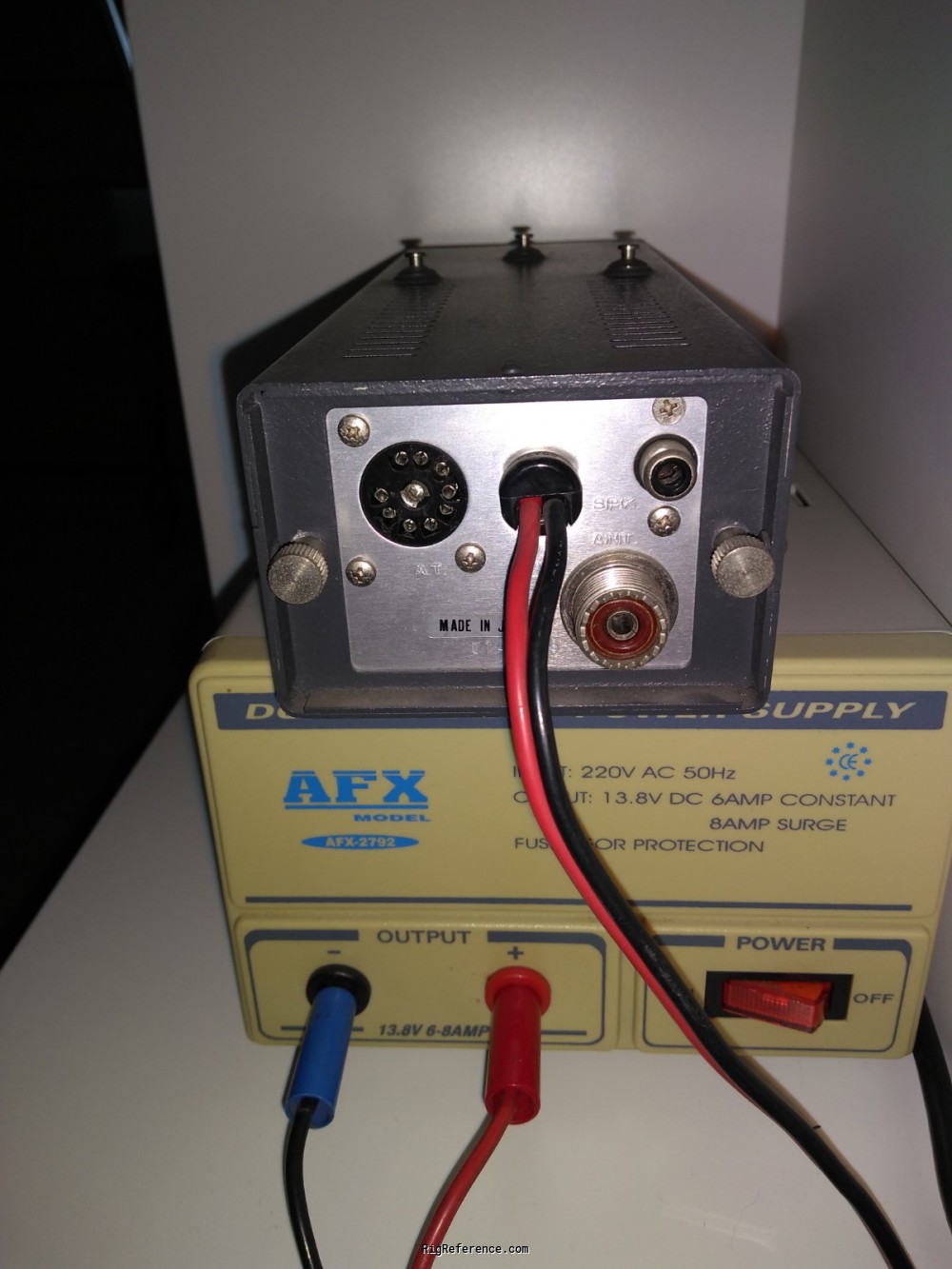

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
80-320 mA
TX
2.6 A max

Physical

Dimensions (w×h×d)
84 × 58 × 235 mm (3.31 × 2.28 × 9.25 in)
Weight
960 gr (2.1 lbs)
Form factor
Mobile
Manufactured
Between 19xx and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6602
MPN
STANDARD-C-000828M

Manuals, diagrams and brochures

Standard C828 M Operating Instructions PDF - 7.98 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Standard Horizon C-828M. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Standard Horizon C-828M is around:

  • EUR 0.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
1978 EUR 20.00 Used / Good Julien
