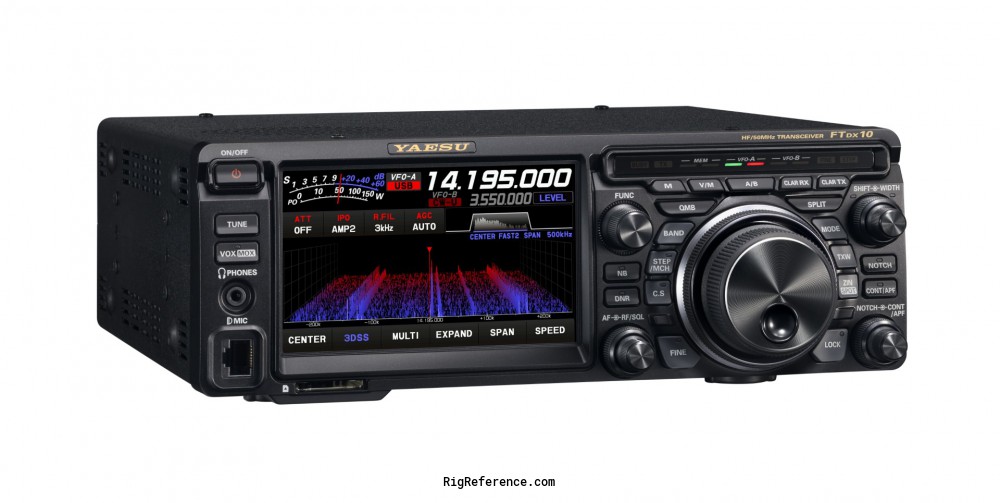

Hybrid SDR. 5" color touch TFT. 12 kHz, 3 kHz and 500 Hz roofing filters.
RMDR more than 116 dB. 3rd IMDR better than 109 dB. 250 MHz HRDDS.
3D spectrum stream. Hi-speed ATU with 100 memories. SD card slot.
CAT control. RS-232C. USB A/B. DVI and more...

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  4m
Frequency stability
± 0.5 p.p.m. @ 0 to 50°C (32 to 122°F), after 1 minute warmup
Tuning steps
1 / 5 / 10 Hz (SSB/CW), 10 / 100 Hz (AM/FM)
Memories
100 channels in 6 bank(s)

Receiver

RX-range
0.03-75 MHz
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
Sensitivity
SSB/CW (2.4kHz, 10dB S+N/N)
1.8MHz - 30MHz 0.16µV (AMP2 “ON”)
50MHz - 54MHz 0.125µV (AMP2 “ON”)
70MHz - 70.5MHz 0.16µV (AMP2 “ON”)
AM (BW: 6kHz, 10dB S+N/N, 30% modulation @400Hz)
0.5MHz - 1.8MHz 7.9µV
1.8MHz - 30MHz 2µV (AMP2 “ON”)
50MHz - 54MHz 1µV (AMP2 “ON”)
70MHz - 70.5MHz 2µV (AMP2 “ON”)
FM (1kHz 3.5kHz DEV BW: 12kHz, 12dB SINAD)
28MHz - 30MHz 0.25µV (AMP2 “ON”)
50MHz - 54MHz 0.2µV (AMP2 “ON”)
70MHz - 70.5MHz 0.25µV (AMP2 “ON”)
Selectivity
Mode / –6dB / –60dB
CW (BW=0.5kHz) / 0.5kHz or better / 0.75kHz or less
SSB (BW=2.4kHz) / 2.4kHz or better / 3.6kHz or less
AM (BW=6kHz) / 6kHz or better / 15kHz or less
FM (BW=12kHz) / 12kHz or better / 25kHz or less
Filters
?
Receiver system
Double conversion superheterodyne / Hybrid SDR
IF-frequencies
1st: 9.005 MHz
2nd: 24 kHz
Image rejection
70dB or better (1.8MHz - 28MHz Amateur bands) 60dB or better (50MHz Amateur band) 60dB or better (70MHz UK Amateur band)
Audio output
2.5W into 4Ω with 10% THD

Transmitter

TX-range
10-160m + WARC and 60m / 6m / 4m (Europe)
Modulations
AM   FM   CW   USB   LSB   RTTY   PSK31/63
RF-output
HF 5-100 W (AM: 5-25 W)
6m 5-100 W (AM: 5-25 W)

Connections

Antenna
SO-239
Impedance
50Ω
Other
RS-232C / DVI (external display) / USB

Electrical

Power requirements
13.8 V DC ± 15%
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
266 × 91 × 263 mm (10.47 × 3.58 × 10.35 in)
Weight
5.90 kg (13.0 lbs)
Form factor
Base Station
Manufactured
Between 2020 and 202x

Other features

Usage
Amateur / Ham radio operators
Features + options
SCU-LAN10: LAN unit

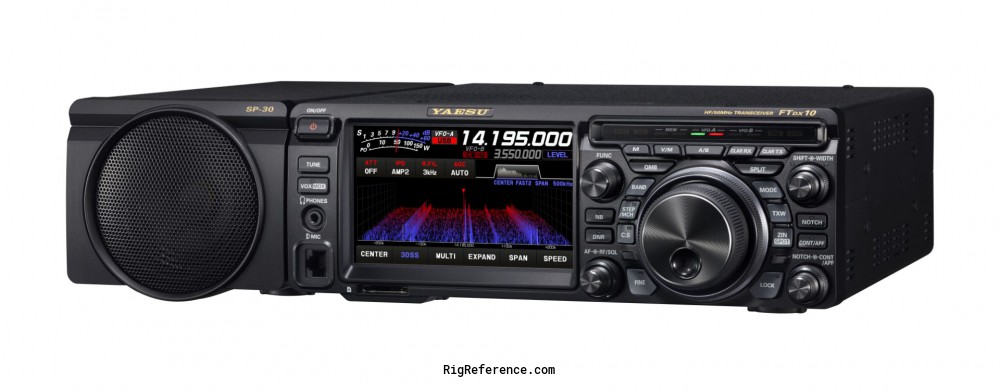

SP-30: External speaker
XF-130CN: 300 Hz roofing filter
YH-77STA: Lightweight headphones
Accessories
-
RigReference ID
6603
MPN
YAESU-FTDX000010

Manuals, diagrams and brochures

Yaesu FTDX10 Catalog PDF - 16.45 MB, submitted by RigReference
Yaesu FTDX10 Owner's Manual PDF - 25.18 MB, submitted by RigReference

Upload relevant documents

Reviews & stories

Rating Title Submitted
yo2cnh 2 years ago by yo2nh

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTDX10. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTDX10 is around:

  • EUR 1623.00 ~ EUR 1393.00
  • USD 1574.00 ~ USD 1475.00
  • GBP 1480.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 EUR 1400.00 New / Mint IZ3XNJ
2022 EUR 1400.00 New / Mint yo2nh
2021 USD 1500.00 New / Mint M Mathews
2021 USD 1600.00 New / Mint Bradley A Barrone
2020 EUR 1700.00 New / Mint RigReference
