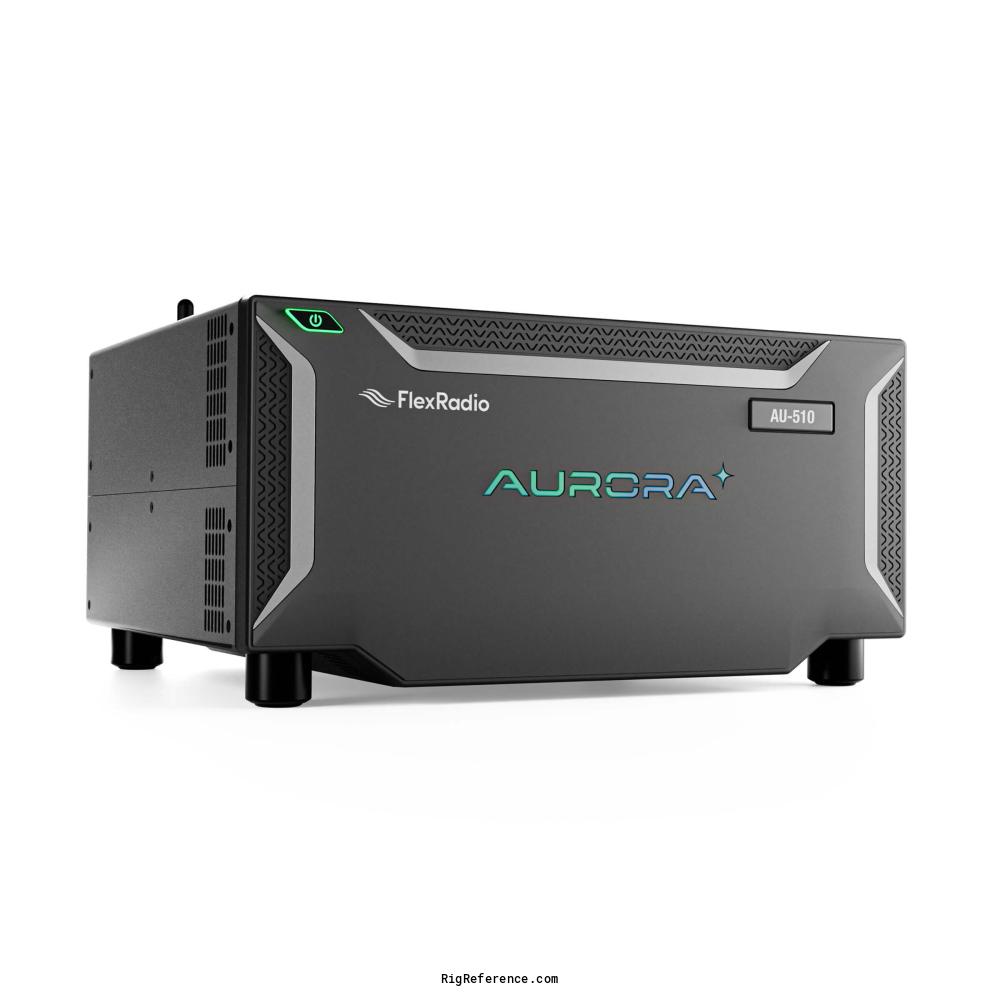

FlexRadio Aurora AU-510

General characteristics

HAM bands

160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m

Frequency stability

0.001 p.p.m. with GNSS, 0.5 p.p.m. with internal TCXO

Tuning steps

?

Memories

?

Receiver

RX-range

30 kHz–54 MHz

Modulations

AM   FM   CW   SSB   RTTY   Multiple (Software defined)

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

SDR

IF-frequencies

?

Image rejection

?

Audio output

-

Transmitter

TX-range

160-6m

Modulations

-

RF-output

160-10m: 1–500W PEP, 125W AM, 6m: 1–200W PEP, 50W AM

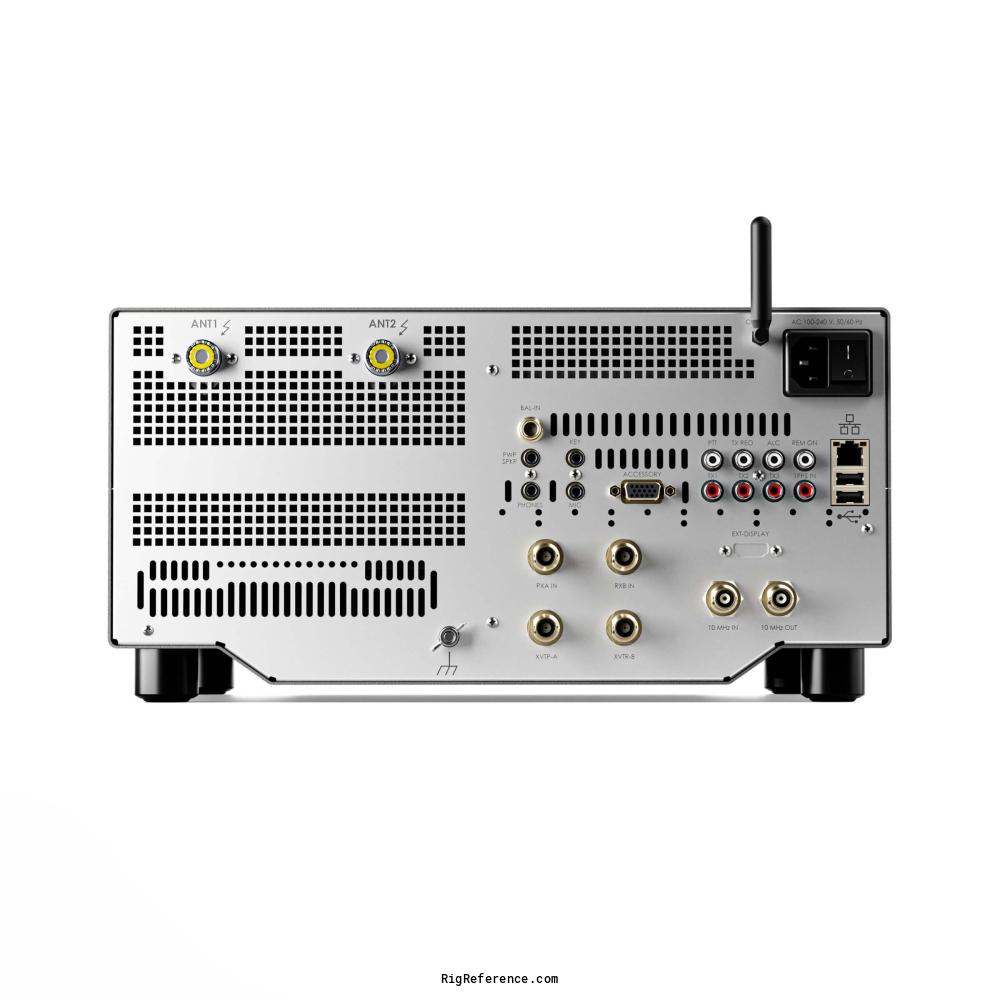

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

80-264 V AC

Current drain RX

35W

TX

675W

Physical

Dimensions (w×h×d)

337 × 171 × 356 mm (13.27 × 6.73 × 14.02 in)

Weight

?

Form factor

Base Station

Manufactured

Between 2026 and 20xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

Remote Operation
Built-in SmartLink™ for use with PC, Mac, iPad®, iPhone®, or Maestro™
GNSS Receiver

Accessories

-

RigReference ID

6642

MPN

FLEXRADIO-AURORA-AU-000510

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used FlexRadio Aurora AU-510. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the FlexRadio Aurora AU-510 is around:

• USD 6191.00
