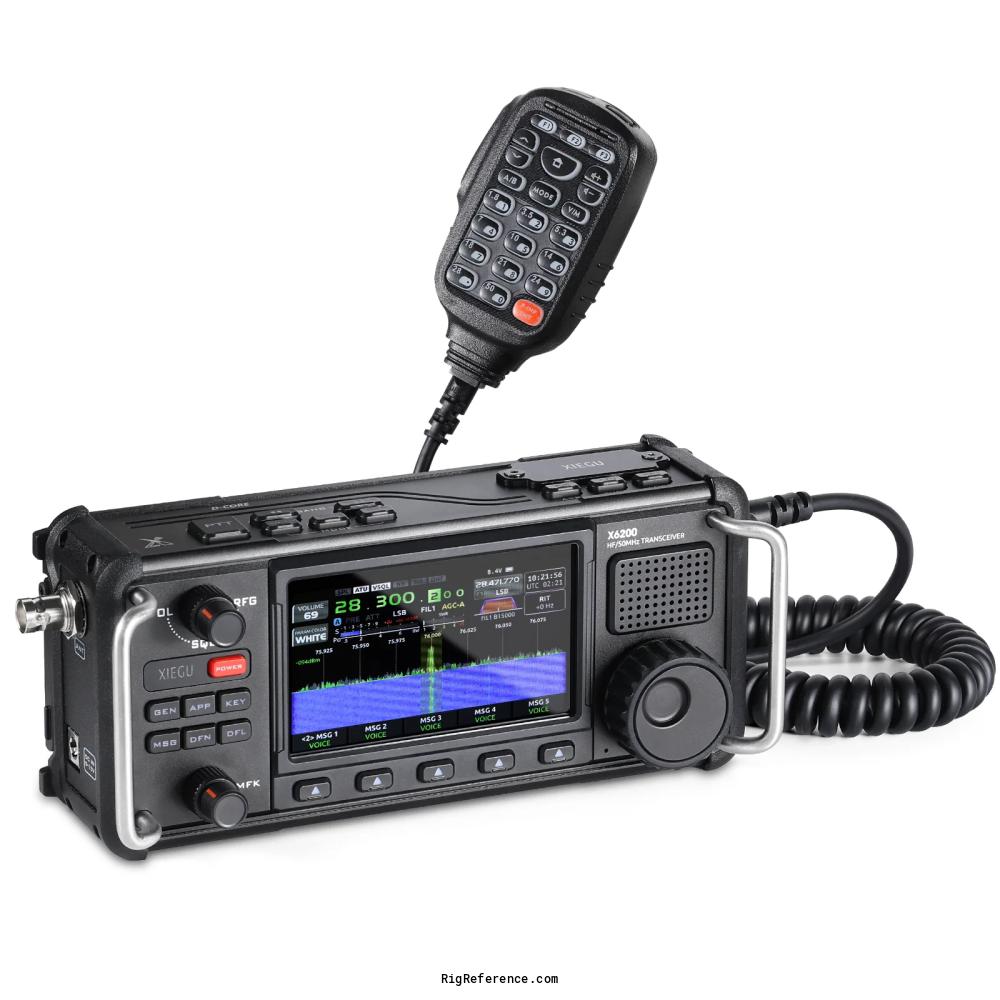

The Xiegu X6200 is the successor of the [[Rig6620]]", is a portable transceiver. It covers 0.5-30 / 50-54 MHz for receive and 10-160 m + WARC / 6 m for transmit. Frequency stability is ≥ 1 p.p.m. after warm-up (20 minutes). Tuning steps are 1 Hz. RF output is 5 W on battery, 10 W on external power. Audio output is through an internal speaker. Current drain is 550 mA in receive and 3 A max in transmit. Dimensions are 86 × 180 × 49 mm.
General characteristics
- HAM bands
- 160m 80m 60m 40m 30m (WARC) 20m 17m (WARC) 15m 12m (WARC) 11m (CB) 6m 10m
- Frequency stability
- ≥ 1 p.p.m. after warm-up (20 minutes)
- Tuning steps
- 1 Hz
- Memories
- ?
Receiver
- RX-range
- 0.5-30 / 50-54 MHz
- Modulations
- AM FM N-FM W-FM CW USB LSB RTTY Digital (other)
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- SDR
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 10-160 m + WARC / 6 m
- Modulations
- AM FM N-FM W-FM CW USB LSB RTTY Digital (other)
- RF-output
- 8 W on battery, 10 W on external power
Connections
- Antenna
- BNC
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 9-15 V DC, 3200 mAh Li-ion
- Current drain RX
- 550 mA
- TX
- 3 A max
Physical
- Dimensions (w×h×d)
- 180 × 86 × 49 mm (7.09 × 3.39 × 1.93 in)
- Weight
- ?
- Form factor
- Portable
- Manufactured
- Between 2024 and 202x in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Built-in antenna tuner
4" color screen - Accessories
- -
- RigReference ID
- 6659
- MPN
- XIEGU-X006200
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Xiegu X6200. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic data, today's second-hand price of the Xiegu X6200 is around:
- EUR 834.00
These estimates are based on the following prices:
