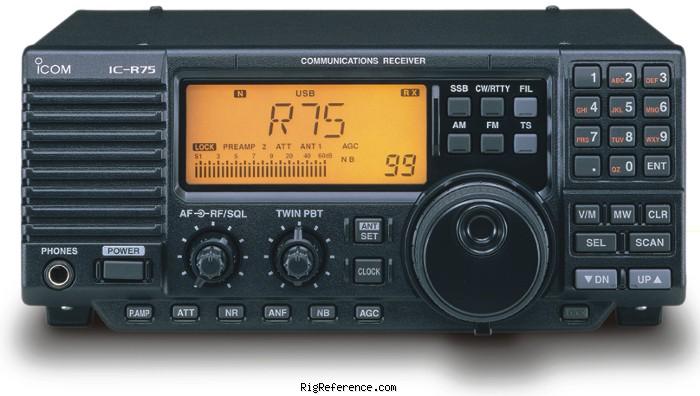

The ICOM IC-R75-12 receiver continues the proud tradition of the earlier ICOM IC-R70 and ICOM IC-R71A models. With full coverage from 30 kHz to 60 MHz; all longwave, medium wave and shortwave frequencies are supported plus extended coverage to include the 6 meter amateur band. Some of innovative features of the R75 include: FM Mode Detection (but not the FM broadcast band), Twin Passband Tuning, Two Level Preamp, 99 Alphanumeric Memories, four Scan Modes, Noise Blanker, Selectable AGC (FAST/SLOW/OFF), Clock-Timer, Squelch, Attenuator and backlit LCD display. Tuning may be selected at 1 Hz or 10 Hz steps plus there is a 1 MHz quick tuning step plus tuning Lock. The R75 exhibits very impressive and very linear sensitivity throughout shortwave. Superior dynamic range insures the handling of both weak and strong signals. The front-firing speaker provides solid, clear audio. The back panel includes a Record Output jack and Tape Recorder Activation jack (both 3.5mm mini). There are both Hi-Z and Lo-Z antenna inputs.

The R75 is an excellent single sideband receiver (SSB). The supplied 2.1 kHz SSB filter is suitable for utility, amateur, or broadcast SSB. However, two optional CW/SSB filter positions are also available (one per I.F.). Click here to view filter chart. The built in 24 hour clock timer is very versatile. You can program the radio to come on and power off at specific times. There is also a sleep function that will turn the radio off after a set period that can be set from 1 minute to 23 hours and 59 minutes. The R75 is not CE certified. Optional filters do not require soldering. The UT-106 DSP Unit is currently installed by Icom and included in the radio.

The earlier model Icom IC-R75-02 included Synchronous AM Detection. This version was discontinued by Icom due to parts availability issues.

General characteristics

HAM bands
6m
Frequency stability
Less than ±7 ppm from 1 min. to 60 min. after power on. After that rate of stability less than ±1 ppm/hr. at +25°C (+77°F). Temperature fluctuations 0°C to +50°C (+32°F to +122°F) less than ±5 ppm.
Tuning steps
0.001 / 0.01 / 1000 kHz
Memories
99 channels in 1 bank(s)

Receiver

RX-range
0.03-60 MHz (0.03-30 / 50-54 MHz guaranteed)
Modulations
AM   AM-sync   FM   CW   USB   LSB   RTTY
Sensitivity
SSB/CW/RTTY
0.1–1.8 MHz 2.0 μV
1.8–28 MHz 0.16 μV
28–29.99 MHz 0.16 μV
50–54 MHz 0.13 μV
AM/S-AM
0.1–1.8 MHz 5.6 μV
1.8–28 MHz 1.6 μV
28–29.99 MHz 1.6 μV
50–54 MHz 1.0 μV
FM
28–29.99 MHz 0.22 μV
50–54 MHz 0.2 μV
Selectivity
SSB/CW/RTTY
More than 2.1 kHz/–6 dB
Less than 4.0 kHz/–60 dB
AM/S-AM
More than 6 kHz/–6 dB
Less than 20 kHz/–50 dB
FM
More than 12 kHz/–6 dB
Less than 30 kHz/–40 dB
Filters
2.4 / 6 / 15 kHz Optional 500 / 250 Hz
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: ~69 MHz
2nd: ~9 MHz
3rd: ~455 / 450 kHz
Image rejection
> 70 dB
Audio output
2 W, 10% distortion @ 8 Ω

Connections

Antenna
SO-239 + Clamps / screws
Impedance
50 / 500Ω
Other
-

Electrical

Power requirements
13.8V DC ±15%
Current drain RX
0.9-1.1 A
TX
-

Physical

Dimensions (w×h×d)
241 × 94 × 229 mm (9.49 × 3.70 × 9.02 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Base Station
Manufactured
Between 1999 and 200x in Japan (Icom restarted production after protests from the market)

Other features

Usage
Amateur / Ham radio operators
Features + options
CI-V interface
PC programmable (RS-232)
Accessories
-
RigReference ID
3226
MPN
ICOM-IC-R000075

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Reviews & stories

Rating Title Submitted
Nothing else has this many features for $700. 11 years ago by Radio10

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-R75. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-R75 is around:

  • EUR 405.00
  • USD 58.00 ~ USD 293.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2019 USD 326.00 Used / Good eBay
2019 EUR 450.00 Used / Good f61112
2013 USD 579.95 Used / Good universal-radio
2010 USD 419.95 New / Good universal-radio
2010 USD 400.00 Used / Good eBay
