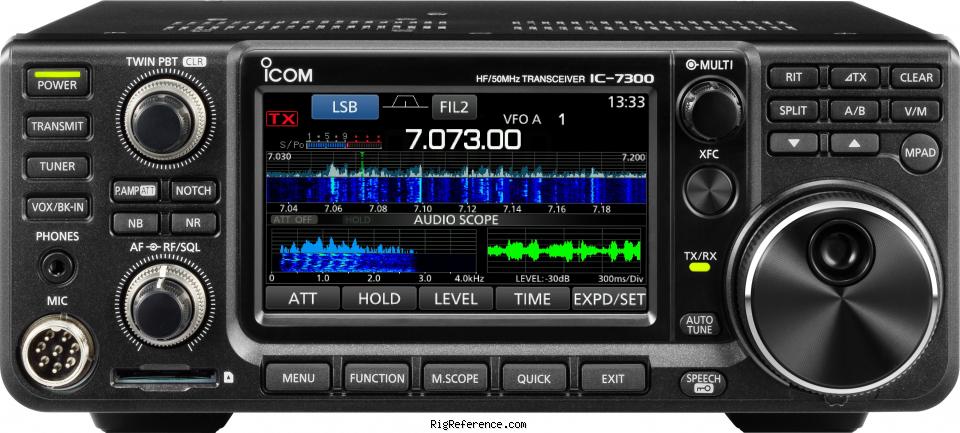

The IC-7300 employs an RF direct sampling system, where RF signals are directly convert to digital data. Then processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction as well as reduce noise that can mask weak signals.

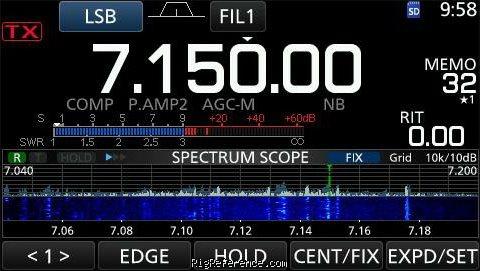

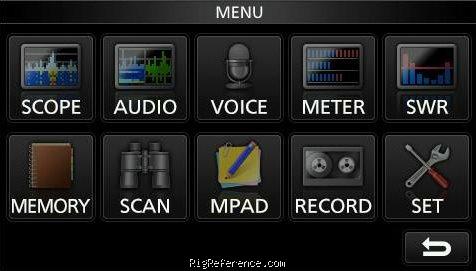

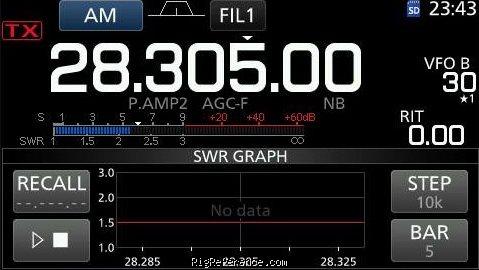

The large 4.3” color TFT touch LCD offers intuitive operation of functions, settings, and various operational visual aids such as the band scope, waterfall function, and audio scope.

Antenna tuner specs
Frequency range : 1.9–50MHz bands
Matching impedance range : 16.7Ω–150Ω unbalanced (VSWR better than 1: 3)
Tuning accuracy : VSWR 1: 1.5 or less
Tuning time : 2–3 seconds (Maximum 15 seconds)

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  10m  4m
Frequency stability
Less than ±0.5 p.p.m. (–10˚C to +60˚C; 14˚F to 140˚F)
Tuning steps
1 Hz
101 channels in bank(s)


RX: 0.03-74.8 MHz (some bands not guaranteed)
AM   FM   CW   USB   LSB   RTTY
SSB/CW (at 10dB S/N)
0.5-1.8MHz: -
1.8-29.995MHz: 0.16μV
28.0-29.7MHz: -
50MHz band: 0.13μV

AM (at 10dB S/N)
0.5-1.8MHz: 12.6μV
1.8-29.995MHz: 2.0μV
28.0-29.7MHz: -
50MHz band: 1.0μV

FM (at 12dB SINAD)
0.5-1.8MHz: -
1.8-29.995MHz: -
28.0-29.7MHz: 0.5μV
50MHz band: 0.25μV
SSB (BW: 2.4KHz)
More than 2.4kHz/–6dB
Less than 3.4kHz/–40dB

CW (BW: 500Hz)
More than 500Hz/–6dB
Less than 700Hz/–40dB

RTTY (BW: 500Hz)
More than 500Hz/–6dB
Less than 800Hz/–40dB

AM (BW: 6kHz)
More than 6.0kHz/–6dB
Less than 10kHz/–40dB

FM (BW: 15kHz)
More than 12.0kHz/–6dB
Less than 22kHz/–40dB
Receiver system
Direct Sampling Superheterodyne
36 kHz
Image rejection
More than 70dB
Audio output
More than 2.5W (at 10% distortion with an 8Ω load, 1kHz)


1.8-1.999 / 3.5-3.999 / 5.255-5.405* / 7-7.3 / 10.1-10.15 / 14-14.35 / 18.068-18.168 / 21-21.45 / 24.89-24.99 / 28-29.7 / 50-54 MHz
AM   FM   CW   USB   LSB   RTTY
SSB/CW/FM/RTTY: 2–100W, AM: 1–25W




Power requirements
13.8V DC ±15%
Current drain RX
0.9A typical (Standby), 1.25A (Maximum audio)
21A (at 100W output power)


Dimensions (w×h×d)
240 × 94 × 238 mm (9.45 × 3.70 × 9.37 in) (projections not included)
4.20 kg (9.3 lbs)
Form factor
Base Station
Between 2016 and 20xx

Other features

Amateur / Ham radio operators
Features + options
Real-time spectrum scope
Built-in automatic antenna tuner
101 channels (99 regular, 2 scan edges)
SD memory card slot for saving data
Cooling fan system
Multi-function meter
CW functions: full break-in, CW reverse, CW auto tuning
SSB, CW, RTTY, AM, FM modes
Remote control via PC (RS-BA1 IP remote control software)
RigReference ID

Manuals, diagrams and brochures

ICOM IC-7300 Basic Manual (English) PDF - 14.31 MB, submitted by RigReference
ICOM IC-7300 Full Manual (English) PDF - 25.73 MB, submitted by RigReference
ICOM IC-7300 Service (English) PDF - 13.38 MB, submitted by William
Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-7300. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the ICOM IC-7300 is around:

  • EUR 811.00 ~ EUR 787.00
  • USD 766.00 ~ USD 687.00
  • CAD 1198.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2024 CAD 1200.00 Used / Good Cathy Johnson
2021 EUR 800.00 Used / Mint Henry
2020 USD 719.95 Used / Good universal-radio
2020 USD 1170.00 New / Mint GigaParts
2020 USD 980.00 New / Mint souchan473
