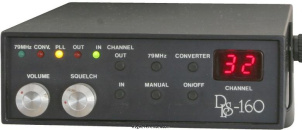

DLS 160

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

77.5-80 MHz (410-412.5 MHz Hi band converter option: DLS-410)

Modulations

FM

Sensitivity

0.3 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Double-conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 kHz - Ceramic filter: Murata CFW455E

Image rejection

?

Audio output

?

Connections

Antenna

TV-antenne

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

120 × 40 × 180 mm (4.72 × 1.57 × 7.09 in)

Weight

650 gr (1.4 lbs)

Form factor

Mobile

Manufactured

Between 198x and 198x in Sweden

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2556

MPN

DLS-000160

Manuals, diagrams and brochures

No manuals yet for the DLS 160. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used DLS 160. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Scanner / receiver equipment, the estimated value of the DLS 160 is around:

• USD 120 ~ USD 222

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
