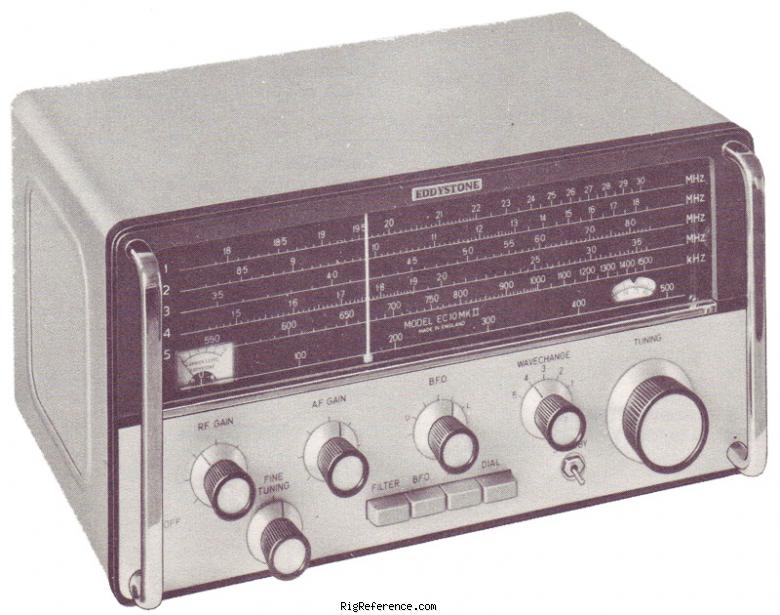

Basically an updated EC10 with added S-meter and fine tuning. Headphone jack moved to the rear panel. A special marine version was available with modified coverage down to 300 kHz and additional crystal-controlled reception channel of 2182 kHz (HF Distress and Calling Channel).

General characteristics

HAM bands
?
Frequency stability
10 ppm per °C
Tuning steps
?
Memories
?

Receiver

RX-range
0.55-30 MHz in 5 bands
Modulations
AM   CW   SSB
Sensitivity
5 µV for 15 dB S/N above 1.5 MHz
15 µV for 15 dB S/N below 1.5 MHz
Selectivity
5 kHz (-6 dB)
25 kHz (-40 dB)
Filters
?
Receiver system
Single conversion
IF-frequencies
465 kHz
Image rejection
85 dB above 1.5 MHz 65 dB below 1.5 MHz
Audio output
1 W @ 10% THD

Connections

Antenna
SO-239
Impedance
75/400Ω
Other
-

Electrical

Power requirements
Internal 9 V battery pack (6×U2 or HP2) Optional 12V DC or mains modules available
Current drain RX
77 mA typical
TX
-

Physical

Dimensions (w×h×d)
317 × 162 × 203 mm (12.48 × 6.38 × 7.99 in)
Weight
6.30 kg (13.9 lbs)
Form factor
Base Station
Manufactured
Between 1970 and 197x in Great Britain

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
2630
MPN
EDDYSTONE-EC000010-MKII
