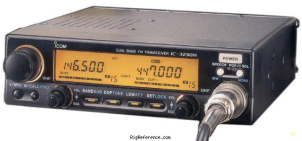

The ICOM IC-3230H dual band mobile FM transceiver boasts 45 watts output on 2 meters and 35 watts on 440 MHz. This rig features a LCD display. Receive range is 136-174, 440-450 MHz. It features 36 memories. There is even a built-in antenna duplexer for easy dual band antenna connection, so there is just one SO-239 on the rear panel. There is a built-in programmable tone encoder (USA version) and 20 dB RF Attenuator. You also get a lock function and illuminated switches. Internal options require only easy plug-in installation.

General characteristics

HAM bands
2m  70cm
Frequency stability
?
Tuning steps
?
Memories
36 channels in 1 bank(s)

Receiver

RX-range
136-174 / 400-479 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
Internal speaker

Transmitter

TX-range
144-146 / 430-440 MHz
Modulations
FM
RF-output
High: 45/35 W, Medium: 10/10 W, Low: 5/5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8V DC
Current drain RX
?
TX
10.5 A max

Physical

Dimensions (w×h×d)
140 × 40 × 165 mm (5.51 × 1.57 × 6.50 in)
Weight
1.25 kg (2.8 lbs)
Form factor
Mobile
Manufactured
Between 1992 and 199x in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
Twin RX
Accessories
-
RigReference ID
3071
MPN
ICOM-IC-003230H
