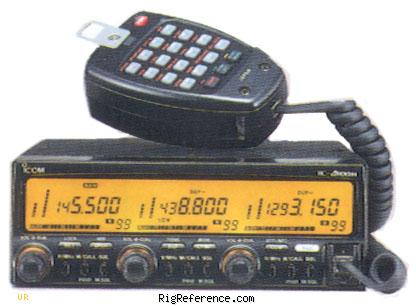

ICOM IC-Delta 100H

General characteristics

HAM bands

2m  70cm  23cm

Frequency stability

2 m/70 cm: ±10 p.p.m. @ -10 to +60°C (14 to 140°F) 23 cm: ±3 p.p.m. @ -10 to +60°C (14 to 140°F)

Tuning steps

5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz

Memories

319 channels in 3 bank(s)

Receiver

RX-range

118-174 / 320-479 / 1000-1400 MHz (EU)
118-174 / 320-479 / 1000-1400 MHz (USA)

Modulations

AM   FM

Sensitivity

0.16 µV (12 dB SINAD)

Selectivity

15 kHz (-6 dB)
30 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 41.8 MHz (2 m) - 42.45 MHz (70 cm) - 72.2 MHz (23 cm)
2nd: 455 kHz

Image rejection

?

Audio output

2.4 W at 10% distortion / 8 ohm

Transmitter

TX-range

144-146 / 430-440 / 1240-1300 MHz (EU)
144-148 / 440-450 / 1240-1300 MHz (USA)

Modulations

FM

RF-output

High: 50/35/10 W, Medium: 10/10/10 W, Low: 5/5/1 W

Connections

Antenna

SO-239 + N-type

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

Max 3.2 A

TX

Max 12 A

Physical

Dimensions (w×h×d)

140 × 50 × 195 mm (5.51 × 1.97 × 7.68 in)

Weight

2.10 kg (4.6 lbs)

Form factor

Mobile

Manufactured

Between 1993 and 199x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

CTCSS/PL encoder
Attenuator (20 dB)
Dimmer
Triple RX.

Accessories

-

RigReference ID

3188

MPN

ICOM-IC-DELTA-000100H
